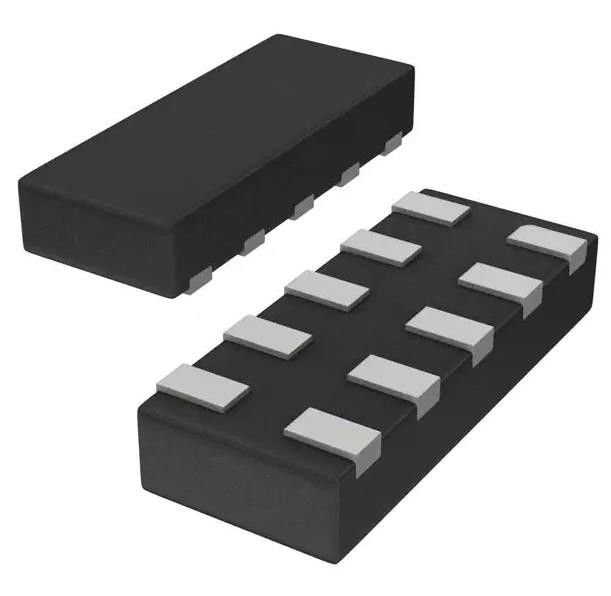

IP4294CZ10-TBR,115 4.1V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510A-10
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IP4294CZ10-TBR,115 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Unidirectional Channels: | 4 | Voltage - Reverse Standoff (Typ): | 5.5V |
|---|---|---|---|
| Voltage - Breakdown (Min): | 6V | Voltage - Clamping (Max) @ Ipp: | 4.1V |
| Current - Peak Pulse (10/1000µs): | 4A (8/20µs) | Power Line Protection: | Yes |
| Applications: | General Purpose | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
IP4294CZ10-TBR,115 4.1V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510A-10
Specifications of IP4294CZ10-TBR,115
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Nexperia USA Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Not For New Designs |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 5.5V |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 4.1V |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-XFDFN |
| Supplier Device Package | DFN2510A-10 |
| Base Product Number | IP4294 |
Features of IP4294CZ10-TBR,115
* System ESD protection for USB 2.0 and SuperSpeed USB 3.0, HDMI, DisplayPort, eSATA and LVDS
* All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of 10 kV exceeding IEC 61000-4-2, level 4
* Matched 0.5 mm trace spacing
* Signal lines with 0.05 pF matching capacitance between signal pairs
* Line capacitance of only 0.5 pF for each channel
* Design-friendly ‘pass-through’ signal routing
Applications of IP4294CZ10-TBR,115
* TVs and monitors
* DVD recorders and players
* Notebooks, main board graphic cards and ports
* Set-top boxes and game consoles
Environmental & Export Classifications of IP4294CZ10-TBR,115
| Administrator: | |
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
