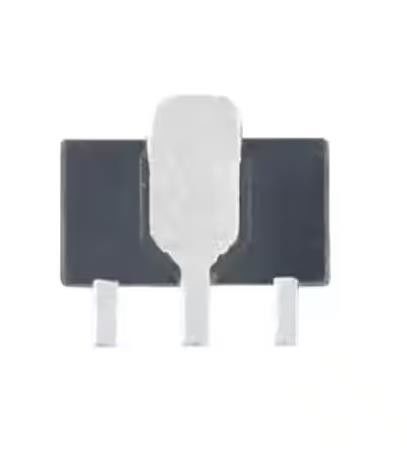

XC6206P302PR Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | XC6206P302PR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 8V | Voltage - Output (Min/Fixed): | 3V |
| Voltage Dropout (Max): | 0.24V @ 50mA | Current - Output: | 100mA |
| PSRR: | 40dB (1kHz) | Operating Temperature: | -25°C ~ 80°C |
Product Description
XC6206P302PR Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3
Specifications of XC6206P302PR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | UMW |
| Series | XC6206 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 8V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.24V @ 50mA |
| Current - Output | 100mA |
| PSRR | 40dB (1kHz) |
| Control Features | Current Limit |
| Protection Features | Over Current, Short Circuit |
| Operating Temperature | -25°C ~ 80°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 |
Features of XC6206P302PR
● High precision output voltage: gear A: ±1%, gear B: ±2.5%
● The highest input voltage can reach 8V.
● Output voltage: 1.5V~5.0V (step size 0.1V)
● Very low static bias current (Typ.=6.0 μ A)
● Low temperature adjustment coefficient
● With strong load capacity: when Vin=4.3V and Vout=3.3V, Iout=250mA.
● It can be used as regulator and reference voltage.
● Good input stability: Typ. 0.03%/V
● Package form: SOT89 -3, SOT23 -3
Applications of XC6206P302PR
XC6206 series is a CMOS step - down voltage regulator with high ripple rejection, low power consumption, low dropout, overcurrent and short - circuit protection.
Environmental & Export Classifications of XC6206P302PR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
