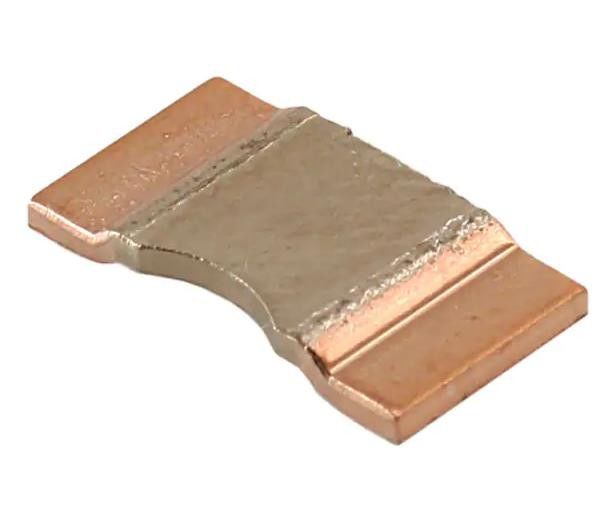

WSL3921L5000FEA 0.5 mOhms ±1% 3W Chip Resistor Nonstandard Anti-Sulfur Automotive
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | WSL3921L5000FEA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Resistance: | 0.5 MOhms |
|---|---|---|---|
| Tolerance: | ±1% | Power (Watts): | 3W |
| Composition: | Metal Element | Temperature Coefficient: | ±175ppm/°C |
| Operating Temperature: | -65°C ~ 170°C | Ratings: | AEC-Q200 |
Product Description
WSL3921L5000FEA 0.5 mOhms ±1% 3W Chip Resistor Nonstandard Anti-Sulfur Automotive
Specifications of WSL3921L5000FEA
| TYPE | DESCRIPTION |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr | Vishay Dale |
| Series | WSL |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Resistance | 0.5 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 3W |
| Composition | Metal Element |
| Features | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±175ppm/°C |
| Operating Temperature | -65°C ~ 170°C |
| Package / Case | Nonstandard |
| Supplier Device Package | 3921 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.394" L x 0.205" W (10.00mm x 5.20mm) |
| Height - Seated (Max) | 0.020" (0.50mm) |
Features of WSL3921L5000FEA
• All welded construction of the Power Metal Strip® resistors are ideal for all types of current sensing, voltage division and pulse applications
• Proprietary processing technique produces extremely low resistance values, down to 0.0001 Ω
• Sulfur resistance by construction that is unaffected by high sulfur environments
• Solid metal iron-chrome or manganese-copper alloy resistive element with low TCR (< 20 ppm/°C)
• Very low inductance 0.5 nH to 5 nH
• Low thermal EMF (< 3 μV/°C)
• AEC-Q200 qualified (1)
Environmental & Export Classifications of WSL3921L5000FEA
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8533.21.0030 |
