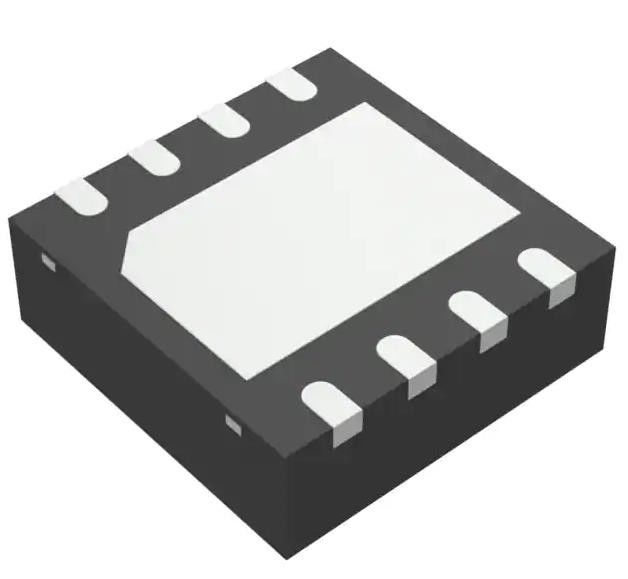

UCC27201ADRMR Half-Bridge Gate Driver IC Non-Inverting 8-VSON (4x4)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | UCC27201ADRMR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Driven Configuration: | Half-Bridge | Channel Type: | Independent |
|---|---|---|---|
| Number Of Drivers: | 2 | Gate Type: | N-Channel MOSFET |
| Voltage - Supply: | 8V ~ 17V | Logic Voltage - VIL, VIH: | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink): | 3A, 3A | High Side Voltage - Max (Bootstrap): | 120 V |
Product Description
UCC27201ADRMR Half-Bridge Gate Driver IC Non-Inverting 8-VSON (4x4)
Specifications of UCC27201ADRMR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 17V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 120 V |
| Rise / Fall Time (Typ) | 8ns, 7ns |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-VSON (4x4) |
| Base Product Number | UCC27201 |
Features of UCC27201ADRMR
* Drives Two N-Channel MOSFETs in High-Sideand Low-Side Configuration
* Negative Voltage Handling on HS (-18V)
* Maximum Boot Voltage 120 V
* Maximum VDD Voltage 20 V
* On-Chip 0.65-V VF, 0.6-Q RD Botstrap Diode
* Greater than 1 MHz of Operation
* 20-ns Propagation Delay Times
* 3-A Sink, 3-A Source Output Currents
* 8-ns Rise/7-ns Fall Time with 1000-pF Load
* 1-ns Delay Matching
* Undervoltage Lockout for High-Side and Low-SideDriver
* Offered in 8-Pin SOIC (D), PowerPADTw SOIC-8(DDA), SON-8(DRM),SON-9 (DRC) and SON-10(DPR) Packages
* Specified from -40°C to 140°C
Applications of UCC27201ADRMR
* Power Supplies for Telecom, Datacom, andMerchant Markets
* Half-Bridge Applications and Full-BridgeConverters
* lsolated Bus Architecture
* Two-Switch Forward Converters
* Active-Clamp Forward Converters
* High-Voltage Synchronous-Buck Converters
* Class-D Audio Amplifiers
Environmental & Export Classifications of UCC27201ADRMR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
