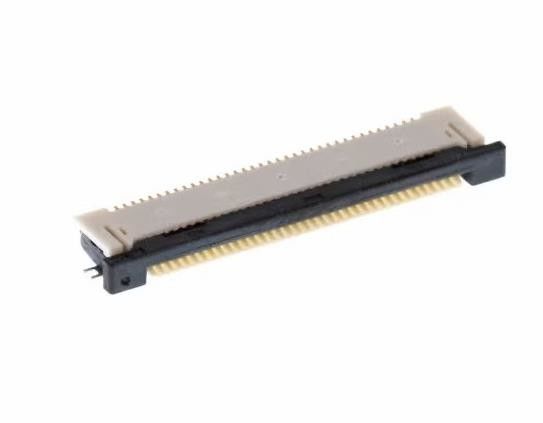

54132-3662 36 Position FFC FPC Connector Contacts Bottom 0.020" Right Angle
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 54132-3662 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Connector/Contact Type: | Contacts, Bottom | Number Of Positions: | 36 |
|---|---|---|---|
| Pitch: | 0.020" (0.50mm) | Termination: | Solder |
| FFC, FCB Thickness: | 0.30mm | Height Above Board: | 0.079" (2.00mm) |
| Locking Feature: | Slide Lock | Cable End Type: | Straight, Tapered |
Product Description
54132-3662 36 Position FFC FPC Connector Contacts Bottom 0.020" Right Angle
Specifications of 54132-3662
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| Mfr | Molex |
| Series | Easy-On 54132 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 36 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight, Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -20°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Housing Color | White |
| Actuator Color | Black |
| Mating Cycles | 20 |
| Base Product Number | 54132 |
Environmental & Export Classifications of 54132-3662
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4051 |
