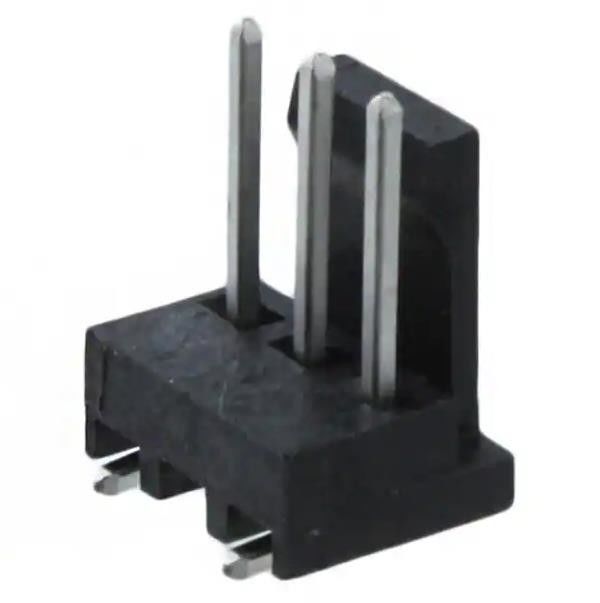

3-647166-3 Connector Header Surface Mount 3 position 0.100" (2.54mm)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 3-647166-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Termination: | Solder | Fastening Type: | Friction Lock |
|---|---|---|---|
| Contact Length - Mating: | 0.290" (7.37mm) | Insulation Height: | 0.347" (8.81mm) |
| Contact Shape: | Square | Contact Finish - Mating: | Tin |
| Contact Material: | Copper Alloy | Insulation Material: | Polyamide (PA46), Nylon 4/6 |
Product Description
3-647166-3 Connector Header Surface Mount 3 position 0.100" (2.54mm)
Specifications of 3-647166-3
|
TYPE
|
DESCRIPTION
|
|
Category
|
Connectors, Interconnects
|
|
Rectangular Connectors
|
|
|
Headers, Male Pins
|
|
|
Mfr
|
TE Connectivity AMP Connectors
|
|
Series
|
MTA-100
|
|
Package
|
Bulk
|
|
Product Status
|
Active
|
|
Connector Type
|
Header
|
|
Contact Type
|
Male Pin
|
|
Pitch - Mating
|
0.100" (2.54mm)
|
|
Number of Positions
|
3
|
|
Number of Rows
|
1
|
|
Row Spacing - Mating
|
-
|
|
Number of Positions Loaded
|
All
|
|
Style
|
Board to Cable/Wire
|
|
Shrouding
|
Shrouded - 1 Wall
|
|
Mounting Type
|
Surface Mount
|
|
Termination
|
Solder
|
|
Fastening Type
|
Friction Lock
|
|
Contact Length - Mating
|
0.290" (7.37mm)
|
|
Contact Length - Post
|
-
|
|
Overall Contact Length
|
-
|
|
Insulation Height
|
0.347" (8.81mm)
|
|
Contact Shape
|
Square
|
|
Contact Finish - Mating
|
Tin
|
|
Contact Finish Thickness - Mating
|
-
|
|
Contact Finish - Post
|
Tin
|
|
Contact Material
|
Copper Alloy
|
|
Insulation Material
|
Polyamide (PA46), Nylon 4/6
|
|
Features
|
-
|
|
Operating Temperature
|
-55°C ~ 105°C
|
|
Ingress Protection
|
-
|
|
Material Flammability Rating
|
UL94 V-0
|
|
Insulation Color
|
Black
|
|
Current Rating (Amps)
|
Varies by Wire Gauge
|
|
Voltage Rating
|
250VAC
|
|
Mated Stacking Heights
|
-
|
|
Contact Finish Thickness - Post
|
-
|
|
Applications
|
General Purpose
|
|
Base Product Number
|
647166
|
Features of 3-647166-3
* Connector System Wire-to-Board
* Header Type Partially Shrouded
* Sealable No
* Connector & Contact Terminates To Printed Circuit Board
* PCB Connector Assembly Type PCB Mount Header
Applications of 3-647166-3
TE Internal #: 3-647166-3
PCB Mount Header, Vertical, Wire-to-Board, 3 Position, 2.54 mm [.1 in] Centerline, Partially Shrouded, Tin, Surface Mount, Signal, Black, MTA 100
