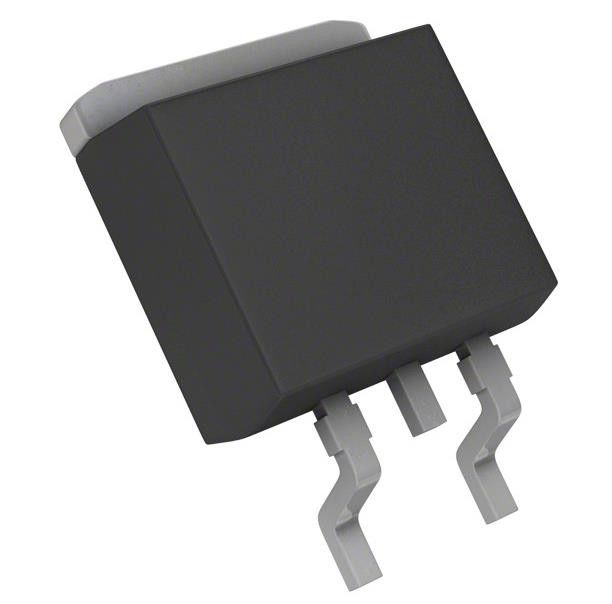

2SD2143TL Bipolar Transistor NPN - Darlington 60 V 2 A 10 W Surface Mount CPT3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 2SD2143TL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Transistor Type: | NPN - Darlington | Current - Collector (Ic) (Max): | 2 A |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 60 V | Vce Saturation (Max) @ Ib, Ic: | 1.5V @ 1mA, 1A |
| Current - Collector Cutoff (Max): | 1µA (ICBO) | DC Current Gain (hFE) (Min) @ Ic, Vce: | 1000 @ 1A, 2V |
| Power - Max: | 10 W | Operating Temperature: | 150°C (TJ) |
Product Description
2SD2143TL Bipolar Transistor NPN - Darlington 60 V 2 A 10 W Surface Mount CPT3
Specifications of 2SD2143TL
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Rohm Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Not For New Designs |
| Transistor Type | NPN - Darlington |
| Current - Collector (Ic) (Max) | 2 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 1mA, 1A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 1A, 2V |
| Power - Max | 10 W |
| Frequency - Transition | - |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | CPT3 |
| Base Product Number | 2SD2143 |
Features of 2SD2143TL
1) Built-in zener diode between collector and base.
2) Strong protection against reverse surges due to "L" loads.
3) Built-in resistor between base and emitter.
4) Built-in damper diode.
Environmental & Export Classifications of 2SD2143TL
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
