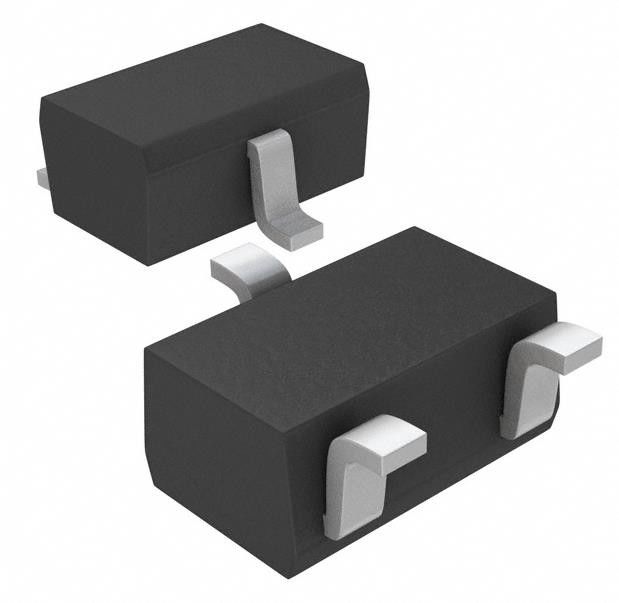

2SC5876 T106Q Bipolar Transistor NPN 60 V 500 mA 300MHz 200 mW Surface Mount
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 2SC5876 T106Q |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Transistor Type: | NPN | Current - Collector (Ic) (Max): | 500 MA |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 60 V | Vce Saturation (Max) @ Ib, Ic: | 300mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max): | 1µA (ICBO) | DC Current Gain (hFE) (Min) @ Ic, Vce: | 120 @ 50mA, 2V |
| Power - Max: | 200 MW | Frequency - Transition: | 300MHz |
Product Description
2SC5876 T106Q Bipolar Transistor NPN 60 V 500 mA 300MHz 200 mW Surface Mount
Specifications of 2SC5876 T106Q
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Rohm Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Not For New Designs |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 50mA, 2V |
| Power - Max | 200 mW |
| Frequency - Transition | 300MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | UMT3 |
| Base Product Number | 2SC5876 |
Features of 2SC5876 T106Q
1)High speed switching. (Tf:Typ.:80ns at IC=500mA)
2)Low saturation voltage, typically (Typ.:150mV at IC=100mA, IB=10mA)
3)Strong discharge power for inductive load and capacitance load.
4)Complements the 2SA2088.
Applications of 2SC5876 T106Q
LOW FREQUENCY AMPLIFIER, HIGH SPEED SWITCHING
Environmental & Export Classifications of 2SC5876 T106Q
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0075 |
