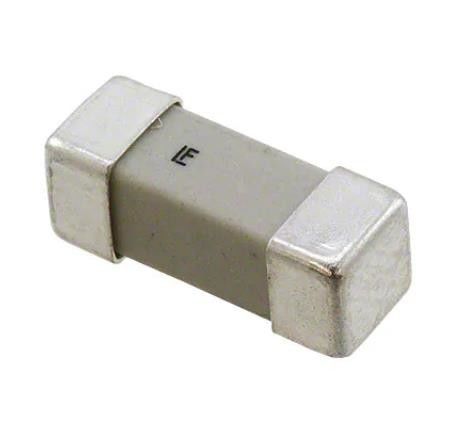

0485001.DR 1 A AC 600 V DC Fuse Board Mount Surface Mount 2-SMD Square End Block
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 048069000000800+ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Fuse Type: | Board Mount (Cartridge Style Excluded) | Current Rating (Amps): | 0.041666667 |
|---|---|---|---|
| Voltage Rating - DC: | 600 V | Response Time: | Fast Blow |
| Package / Case: | 2-SMD, Square End Block | Breaking Capacity @ Rated Voltage: | 100A |
| Melting I²t: | 0.304 | Operating Temperature: | -55°C ~ 125°C |
Product Description
0485001.DR 1 A AC 600 V DC Fuse Board Mount Surface Mount 2-SMD Square End Block
Specifications of 0485001.DR
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Fuses | |
| Mfr | Littelfuse Inc. |
| Series | 485 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 0.041666667 |
| Voltage Rating - DC | 600 V |
| Response Time | Fast Blow |
| Package / Case | 2-SMD, Square End Block |
| Breaking Capacity @ Rated Voltage | 100A |
| Melting I²t | 0.304 |
| Approval Agency | CSA, UL |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.476" L x 0.177" W x 0.177" H (12.10mm x 4.50mm x 4.50mm) |
| DC Cold Resistance | 0.3044 Ohms |
Features of 0485001.DR
• Fast-Acting / Surface mount high fuse for high voltage (up to 600VDC) applications.
• Fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly.
• Relatively high breaking capacity at 100A.
• RoHS-compliant and Halogen-free
• Ampere Ratings: 1A - 3.15A
Applications of 0485001.DR
• PC server and Telecom systems
• LCD TV inverter boards DC input protection
• Uninterruptible Power Supply (UPS) / 3-Phase Power Supplies
• 380VDC server / lighting in data center
Environmental & Export Classifications of 0485001.DR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.10.0040 |
