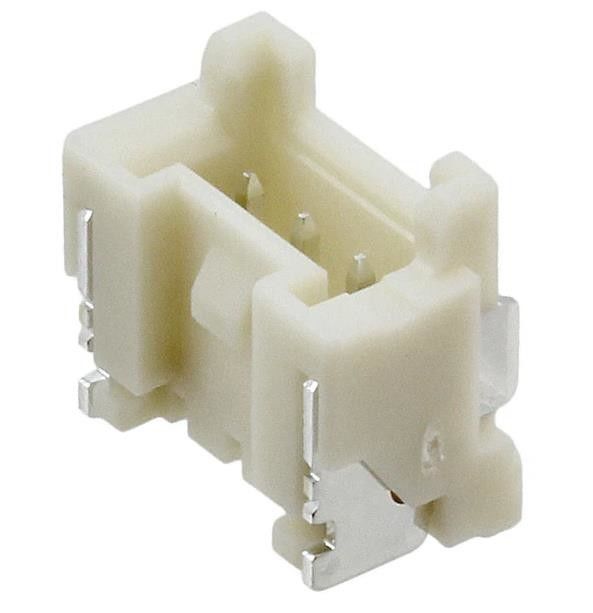

BM03B-PASS-1-TFT(LF)(SN) Connector Header 3 position 0.079" (2.00mm)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BM03B-PASS-1-TFT(LF)(SN) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Connector Type: | Header | Contact Type: | Male Pin |
|---|---|---|---|
| Pitch - Mating: | 0.079" (2.00mm) | Number Of Positions: | 3 |
| Number Of Rows: | 1 | Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Surface Mount | Termination: | Solder |
Product Description
BM03B-PASS-1-TFT(LF)(SN) Connector Header 3 position 0.079" (2.00mm)
Specifications of BM03B-PASS-1-TFT(LF)(SN)
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | JST Sales America Inc. |
| Series | PA |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.350" (8.89mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Board Guide, Pick and Place, Solder Retention |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250V |
| Mated Stacking Heights | 11.1mm, 16mm, 16.2mm |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | BM03B-PA |
Features of BM03B-PASS-1-TFT(LF)(SN)
• Temperature range: -25℃ to +85℃
• Contact resistance: Initial value/ 10 mΩ max.
• Insulation resistance: Initial/ 1,000 MΩ min.
• Withstanding voltage: 800 VAC/minute
Applications of BM03B-PASS-1-TFT(LF)(SN)
The 2.0 mm pitch PA family consists of the following connectors:
・PA connector (Wire-to-board crimp style)
・PAF connector (Wire-to-board insulation displacement connection (IDC) style)
・PAL connector (Wire-to-wire crimp style)
These features enabled a harness with complicated shape for the first time as a 2.0 mm pitch connector with secure locking mechanism.
Environmental & Export Classifications of BM03B-PASS-1-TFT(LF)(SN)
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
