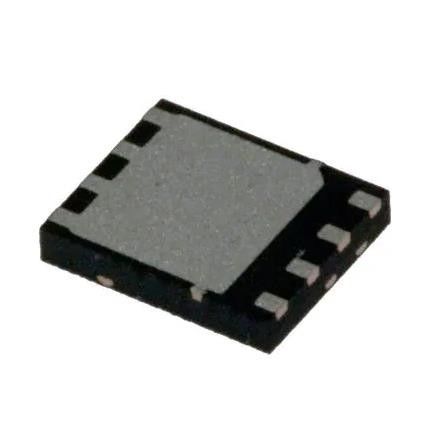

CSD17308Q3 N-Channel 30 V 14A 44A 2.7W Surface Mount 8-VSON-CLIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CSD17308Q3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 30 V | 25 V: | 14A (Ta), 44A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 3V, 8V | Rds On (Max) @ Id, Vgs: | 10.3mOhm @ 10A, 8V |
| Vgs(th) (Max) @ Id: | 1.8V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 5.1 NC @ 4.5 V |
| Vgs (Max): | +10V, -8V | ||
Product Description
CSD17308Q3 N-Channel 30 V 14A 44A 2.7W Surface Mount 8-VSON-CLIP
Specifications of CSD17308Q3
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Texas Instruments |
| Series | NexFET™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta), 44A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 3V, 8V |
| Rds On (Max) @ Id, Vgs | 10.3mOhm @ 10A, 8V |
| Vgs(th) (Max) @ Id | 1.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5.1 nC @ 4.5 V |
| Vgs (Max) | +10V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | 700 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.7W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSON-CLIP (3.3x3.3) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | CSD17308 |
Features of FDV301N
• Optimized for 5-V gate drive
• Ultra-low Qg and Qgd
• Low thermal resistance
• Avalanche rated
• Lead-free terminal plating
• RoHS compliant
• Halogen free
• VSON 3.3 mm × 3.3 mm plastic package
Applications of FDV301N
• Notebook point of load
• Point-of-load synchronous buck in networking, telecom, and computing systems
Environmental & Export Classifications of FDV301N
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
