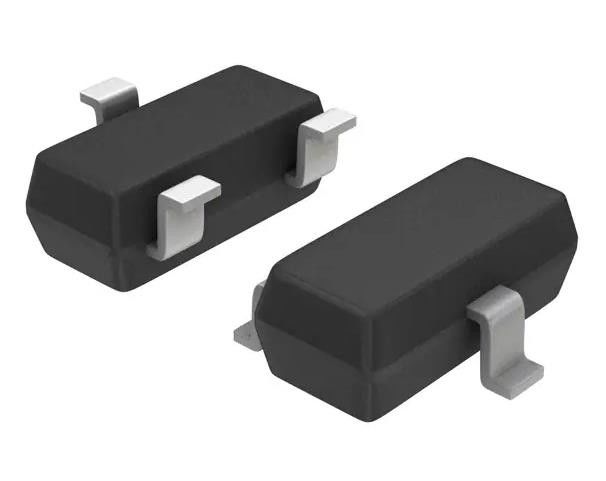

SZMMBZ27VCLT1G 38V Clamp 1A Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SZMMBZ27VCLT1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Zener | Unidirectional Channels: | 2 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 22 V | Voltage - Breakdown (Min): | 25.65V |
| Voltage - Clamping (Max) @ Ipp: | 38V | Current - Peak Pulse (10/1000µs): | 1A |
| Power - Peak Pulse: | 40W | Applications: | Automotive |
Product Description
SZMMBZ27VCLT1G 38V Clamp 1A Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236)
Specifications of SZMMBZ27VCLT1G
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 22V |
| Voltage - Breakdown (Min) | 25.65V |
| Voltage - Clamping (Max) @ Ipp | 38V |
| Current - Peak Pulse (10/1000µs) | 1A |
| Power - Peak Pulse | 40W |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | SZMMBZ27 |
Features of SZMMBZ27VCLT1G
• SOT−23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration
• Standard Zener Breakdown Voltage Range − 15 V, 27 V, 39 V
• Peak Power − 40 W @ 1.0 ms (Bidirectional), per Figure 5 Waveform
• ESD Rating of Class 3B (exceeding 16 kV) per the Human Body Model
• ESD Rating of IEC61000−4−2 Level 4, ±30 kV Contact Discharge
• Low Leakage < 100 nA
• Flammability Rating: UL 94 V−O
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These are Pb−Free Devices
Applications of SZMMBZ27VCLT1G
These dual monolithic silicon zener diodes are designed for applications requiring protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common cathode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium.
