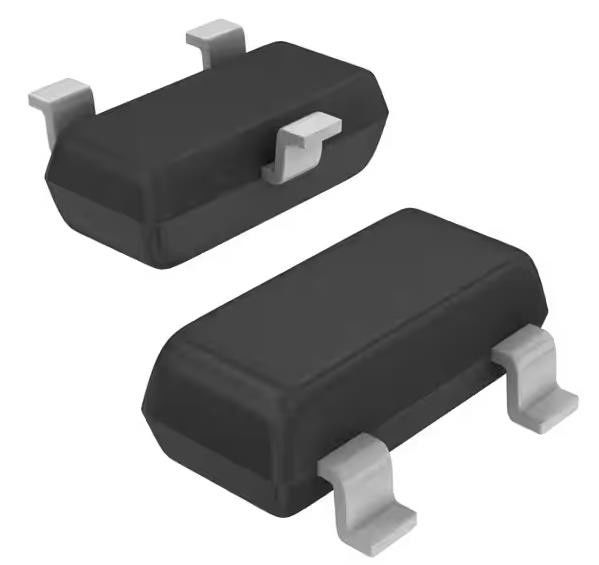

SZBZX84C6V8LT1G Zener Diode 6.8 V 225 mW ±6% Surface Mount SOT-23-3 (TO-236)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SZBZX84C6V8LT1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Voltage - Zener (Nom) (Vz): | 6.8 V | Tolerance: | ±6% |
|---|---|---|---|
| Power - Max: | 225 MW | 225 MW: | 15 Ohms |
| 15 Ohms: | 2 µA @ 2 V | Voltage - Forward (Vf) (Max) @ If: | 900 MV @ 10 MA |
| Operating Temperature: | -65°C ~ 150°C (TJ) | Supplier Device Package: | SOT-23-3 (TO-236) |
Product Description
SZBZX84C6V8LT1G Zener Diode 6.8 V 225 mW ±6% Surface Mount SOT-23-3 (TO-236)
Specifications of SZBZX84C6V8LT1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101, SZBZX84CxxxLT1G |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Voltage - Zener (Nom) (Vz) | 6.8 V |
| Tolerance | ±6% |
| Power - Max | 225 mW |
| Impedance (Max) (Zzt) | 15 Ohms |
| Current - Reverse Leakage @ Vr | 2 µA @ 2 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | SZBZX84 |
Features of SZBZX84C6V8LT1G
• 250 mW Rating on FR−4 or FR−5 Board
• Zener Breakdown Voltage Range − 2.4 V to 75 V
• Package Designed for Optimal Automated Board Assembly
• Small Package Size for High Density Applications
• ESD Rating of Class 3 (> 16 kV) per Human Body Model
• Tight Tolerance Series Available (See Page 4)
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
Applications of SZBZX84C6V8LT1G
This series of Zener diodes is offered in the convenient, surface mount plastic SOT−23 package. These devices are designed to provide voltage regulation with minimum space requirement. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Environmental & Export Classifications of SZBZX84C6V8LT1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0050 |
