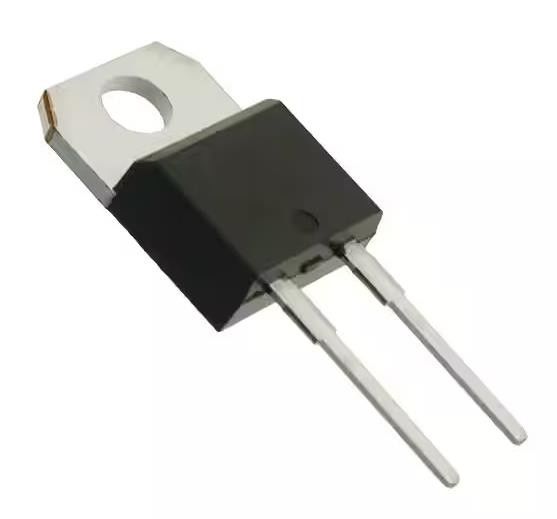

STTH8R04DI Electronic Components Diode 400 V 8A Through Hole TO-220AC ins
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | STTH8R04DI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Technology: | Standard | Voltage - DC Reverse (Vr) (Max) (Max): | 400 V |
|---|---|---|---|
| Current - Average Rectified (Io): | 8A | Voltage - Forward (Vf) (Max) @ If: | 1.5 V @ 8 A |
| Speed: | Fast Recovery =< 500ns, > 200mA (Io) | Reverse Recovery Time (trr): | 50 Ns |
| Current - Reverse Leakage @ Vr: | 10 µA @ 400 V | Operating Temperature - Junction: | -40°C ~ 175°C |
Product Description
STTH8R04DI Electronic Components Diode 400 V 8A Through Hole TO-220AC ins
Specifications of STTH8R04DI
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tube |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 Insulated, TO-220AC |
| Supplier Device Package | TO-220AC ins |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Base Product Number | STTH8R04 |
Features of STTH8R04DI
* Very low switching losses
* High frequency and high pulsed current operation
* High junction temperature
* Insulated package: TO-220AC Ins
* Insulating voltage = 2500 VRMS sine
* ECOPACK®2 compliant component for D²PAK on demand
Applications of STTH8R04DI
This device uses ST's new 400 V planar Pt doping technology. It is specially suited for switching mode base drive and transistor circuits.
Environmental & Export Classifications of STTH8R04DI
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
