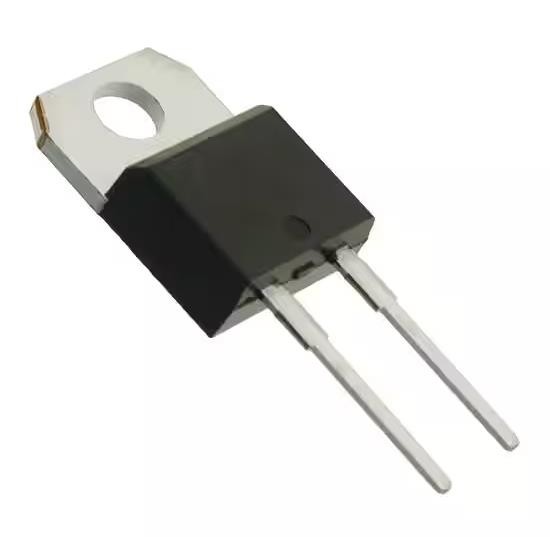

STTH812DI Electronic Components Diode 1200 V 8A Through Hole TO-220AC ins
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | STTH812DI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Technology: | Standard | Voltage - DC Reverse (Vr) (Max): | 1200 V |
|---|---|---|---|
| Current - Average Rectified (Io): | 8A | Voltage - Forward (Vf) (Max) @ If: | 2.2 V @ 8 A |
| Speed: | Fast Recovery =< 500ns, > 200mA (Io) | Reverse Recovery Time (trr): | 100 Ns |
| Current - Reverse Leakage @ Vr: | 8 µA @ 1200 V | Supplier Device Package: | TO-220AC Ins |
Product Description
STTH812DI Electronic Components Diode 1200 V 8A Through Hole TO-220AC ins
Specifications of STTH812DI
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 2.2 V @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 100 ns |
| Current - Reverse Leakage @ Vr | 8 µA @ 1200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 Insulated, TO-220AC |
| Supplier Device Package | TO-220AC ins |
| Operating Temperature - Junction | 175°C (Max) |
| Base Product Number | STTH812 |
Features of STTH812DI
■ Ultrafast, soft recovery
■ Very low conduction and switching losses
■ High frequency and/or high pulsed current operation
■ High reverse voltage capability
■ High junction temperature
■ Insulated packages:
– TO-220Ins Electrical insulation = 2500 VRMS Capacitance = 7 pF
– TO-220FPAC Electrical insulation = 2000 VRMS Capacitance = 12 pF
Applications of STTH812DI
The high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy duty applications that demand long term reliability.
Environmental & Export Classifications of STTH812DI
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
