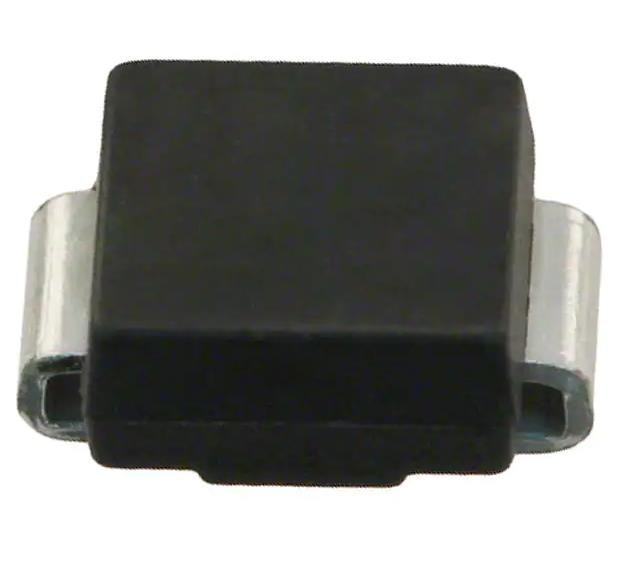

STPS1L40U Electronic Components Diode 40 V 1A Surface Mount SMB
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | STPS1L40U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Technology: | Schottky | Schottky: | 40 V |
|---|---|---|---|
| Current - Average Rectified (Io): | 1A | Voltage - Forward (Vf) (Max) @ If: | 500 MV @ 1 A |
| Speed: | Fast Recovery =< 500ns, > 200mA (Io) | Current - Reverse Leakage @ Vr: | 35 µA @ 40 V |
| Operating Temperature - Junction: | 150°C (Max) | Package / Case: | DO-214AA, SMB |
Product Description
STPS1L40U Electronic Components Diode 40 V 1A Surface Mount SMB
Specifications of STPS1L40U
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 35 µA @ 40 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Operating Temperature - Junction | 150°C (Max) |
| Base Product Number | STPS1 |
Features of STPS1L40U
• Very small conduction losses
• Negligible switching losses
• Low forward voltage drop
• Surface mount miniature packages
• Avalanche rated
• ECOPACK2 compliant
Applications of STPS1L40U
• Reverse polarity protection
• Set-top box power supply
• TV power supply
• Battery charger
Environmental & Export Classifications of STPS1L40U
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
