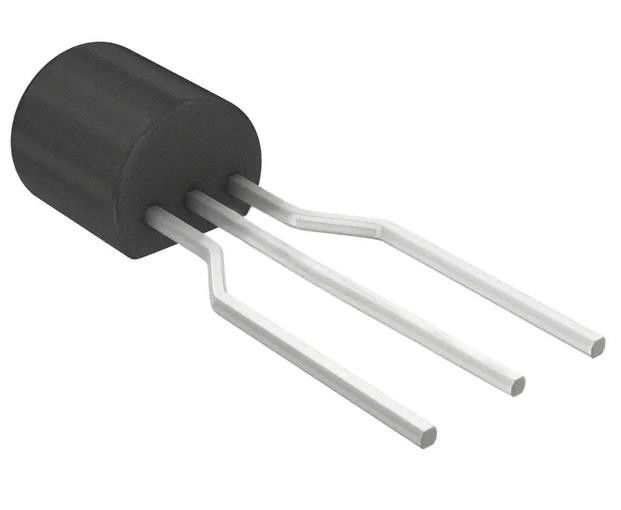

SS8050DTA Bipolar (BJT) Transistor NPN 25 V 1.5 A 100MHz 1 W Through Hole TO-92-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SS8050DTA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Transistor Type: | NPN | Current - Collector (Ic) (Max): | 1.5 A |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 25 V | Vce Saturation (Max) @ Ib, Ic: | 500mV @ 80mA, 800mA |
| Current - Collector Cutoff (Max): | 100nA (ICBO) | DC Current Gain (hFE) (Min) @ Ic, Vce: | 160 @ 100mA, 1V |
| Power - Max: | 1 W | Frequency - Transition: | 100MHz |
Product Description
SS8050DTA Bipolar (BJT) Transistor NPN 25 V 1.5 A 100MHz 1 W Through Hole TO-92-3
Specifications of SS8050DTA
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | onsemi |
| Series | - |
| Package | Cut Tape (CT) |
| Tape & Box (TB) | |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 25 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 80mA, 800mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 100mA, 1V |
| Power - Max | 1 W |
| Frequency - Transition | 100MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Supplier Device Package | TO-92-3 |
| Base Product Number | SS8050 |
Features of SS8050DTA
• 2 W Output Amplifier of Portable Radios in Class B Push−Pull Operation
• Complementary to SS8550
• Collector Current: IC = 1.5 A
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of SS8050DTA
PCB size: FR−4, 76 mm x 114 mm x 1.57 mm (3.0 inch x 4.5 inch x 0.062 inch) with minimum land pattern size.
Environmental & Export Classifications of SS8050DTA
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0075 |
