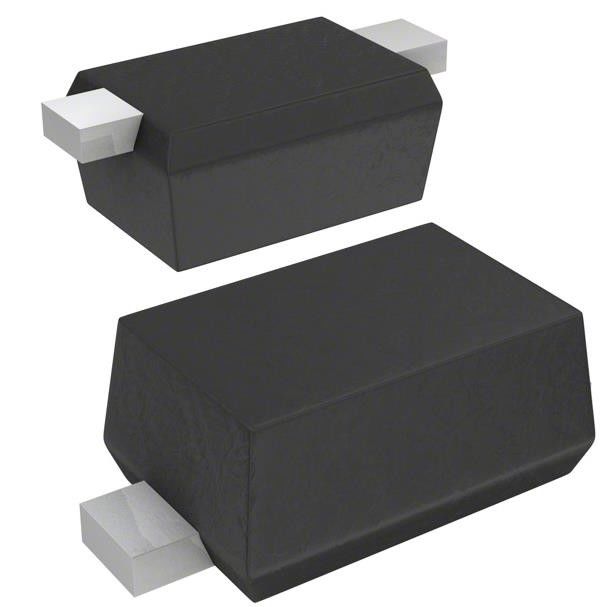

SMV1255-079LF Electronic Components Varactors Single 15 V Surface Mount SC-79
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SMV1255-079LF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Capacitance @ Vr, F: | 5.8pF @ 4.7V, 50MHz | Capacitance Ratio: | 12.3 |
|---|---|---|---|
| Capacitance Ratio Condition: | C0.3/C4.7 | Voltage - Peak Reverse (Max): | 15 V |
| Diode Type: | Single | Q @ Vr, F: | 350 @ 3V, 50MHz |
| Operating Temperature: | -55°C ~ 125°C (TJ) | Supplier Device Package: | SC-79 |
Product Description
SMV1255-079LF Electronic Components Varactors Single 15 V Surface Mount SC-79
Specifications of SMV1255-079LF
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Variable Capacitance (Varicaps, Varactors) | |
| Mfr | Skyworks Solutions Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Capacitance @ Vr, F | 5.8pF @ 4.7V, 50MHz |
| Capacitance Ratio | 12.3 |
| Capacitance Ratio Condition | C0.3/C4.7 |
| Voltage - Peak Reverse (Max) | 15 V |
| Diode Type | Single |
| Q @ Vr, F | 350 @ 3V, 50MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SC-79 |
| Base Product Number | SMV1255 |
Features of SMV1255-079LF
* High capacitance ratio: C0.3V/C4.7V = 12 typical
* Packages rated MSL1, 260 °C per JEDEC J-STD-020
Applications of SMV1255-079LF
* Low tuning voltage VCOs
* High-volume commercial systems
Environmental & Export Classifications of SMV1255-079LF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.59.0080 |
