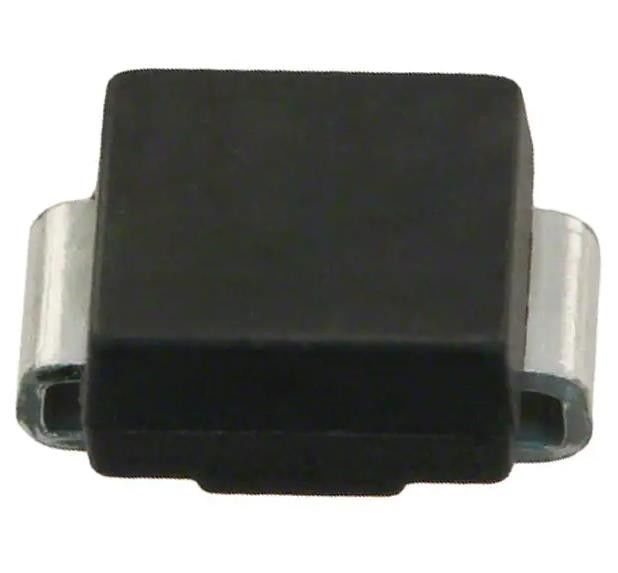

SMTPA240 240V Off-State 150 A Ipp TVS Thyristor DO-214AA SMB
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SMTPA240 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Voltage - Breakover: | 320V | Voltage - Off State: | 240V |
|---|---|---|---|
| Current - Peak Pulse (8/20µs): | 150 A | Current - Peak Pulse (10/1000µs): | 50 A |
| Current - Hold (Ih): | 150 MA | Number Of Elements: | 1 |
| Capacitance: | 25pF | Mounting Type: | Surface Mount |
Product Description
SMTPA240 240V Off-State 150 A Ipp TVS Thyristor DO-214AA SMB
Specifications of SMTPA240
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| Thyristors | |
| Mfr | STMicroelectronics |
| Series | SMP, TRISIL™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Voltage - Breakover | 320V |
| Voltage - Off State | 240V |
| Current - Peak Pulse (8/20µs) | 150 A |
| Current - Peak Pulse (10/1000µs) | 50 A |
| Current - Hold (Ih) | 150 mA |
| Number of Elements | 1 |
| Capacitance | 25pF |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | SMTPA240 |
Features of SMTPA240
■ Bidirectional crowbar protection
■ Voltage range from 62 V to 320 V
■ Low capacitance from 12 pF to 20 pF @ 50 V
■ Low leakage current : IR = 2 µA max
■ Holding current: IH = 150 mA min
■ Repetitive peak pulse current : IPP = 50 A (10/1000 µs)
Applications of SMTPA240
Telecommunication equipment such as:
■ Analog and digital line cards (xDSL, T1/E1, ISDN, ...)
■ Terminals (phone, fax, modem, ...) and central office equipment
Environmental & Export Classifications of SMTPA240
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.30.0080 |
