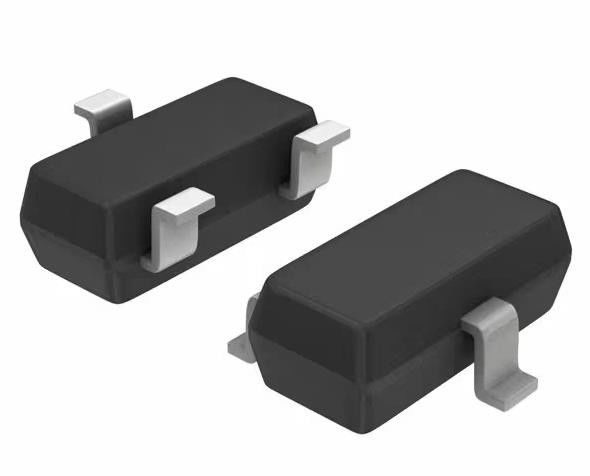

SM712-02HTG 31V 19V Clamp 19A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SM712-02HTG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Zener | Unidirectional Channels: | 2 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 12V (Max), 7V (Max) | Voltage - Breakdown (Min): | 13.3V, 7.5V |
| Voltage - Clamping (Max) @ Ipp: | 31V, 19V | Current - Peak Pulse (10/1000µs): | 19A (8/20µs) |
| Power - Peak Pulse: | 600W | Power Line Protection: | No |
| Applications: | Automotive | Operating Temperature: | -40°C ~ 125°C (TJ) |
Product Description
SM712-02HTG 31V 19V Clamp 19A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3
Specifications of SM712-02HTG
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Littelfuse Inc. |
| Series | Automotive, AEC-Q101, SM712, SPA® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Zener |
| Bidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 12V (Max), 7V (Max) |
| Voltage - Breakdown (Min) | 13.3V, 7.5V |
| Voltage - Clamping (Max) @ Ipp | 31V, 19V |
| Current - Peak Pulse (10/1000µs) | 19A (8/20µs) |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | 75pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
Features of SM712-02HTG
• RoHS compliant and lead-free
• ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
• EFT, IEC 61000-4-4, 50A (5/50ns)
• Lightning, IEC 61000- 4-5 2nd edition, 19A (tP=8/20μs)
• Working Voltages:
-7V to 12V
• Low clamping voltage
• Low leakage current
• AEC-Q101 Qualified
• Moisture Sensitivity Level (MSL-1)
Applications of SM712-02HTG
• RS-485
• Fieldbus
• Modbus
• Profibus
• DMX512
• Security Systems
• AutomatedT eller Machines (ATMs)
• Lighting Control - DALI
• Communication Equipments
Environmental & Export Classifications of SM712-02HTG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
