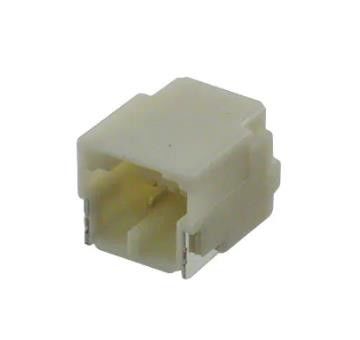

SM02B-NSHSS-TB(LF)(SN) Connector Header Surface Mount Right Angle 2 position
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SM02B-NSHSS-TB(LF)(SN) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Connector Type: | Header | Contact Type: | Male Pin |
|---|---|---|---|
| Pitch - Mating: | 0.039" (1.00mm) | Number Of Positions: | 2 |
| Number Of Rows: | 1 | Style: | Board To Cable/Wire |
| Shrouding: | Shrouded - 4 Wall | Termination: | Solder |
Product Description
SM02B-NSHSS-TB(LF)(SN) Connector Header Surface Mount Right Angle 2 position
Specifications of SM02B-NSHSS-TB(LF)(SN)
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | JST Sales America Inc. |
| Series | NSH |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.173" (4.40mm) |
| Contact Shape | - |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Solder Retention |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 1A |
| Voltage Rating | 50V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | SM02B-NS |
Features of SM02B-NSHSS-TB(LF)(SN)
● Secure locking structure
● Contact lock structure
● Prevention of contact deformation
● Clear engagement click sounds
Applications of SM02B-NSHSS-TB(LF)(SN)
1.0 mm pitch secure lock type connector. This low insertion force type connector realizes easier mating operation. The basic concept of the contact part of this connector is equivalent to the performance proven SHL connector.
Environmental & Export Classifications of SM02B-NSHSS-TB(LF)(SN)
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
Want to Know more details about this product
