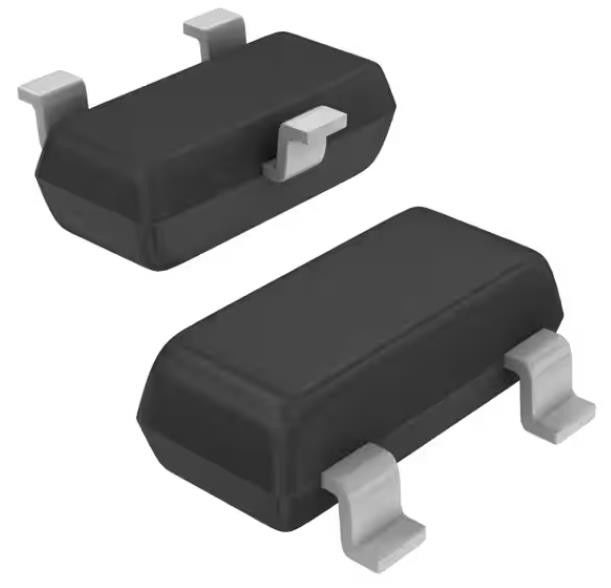

MMBZ5244BLT1G Zener Diode 14 V 225 mW ±5% Surface Mount SOT-23-3 (TO-236)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MMBZ5244BLT1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Voltage - Zener (Nom) (Vz): | 14 V | Tolerance: | ±5% |
|---|---|---|---|
| Power - Max: | 225 MW | Impedance (Max) (Zzt): | 15 Ohms |
| Current - Reverse Leakage @ Vr: | 100 NA @ 10 V | Voltage - Forward (Vf) (Max) @ If: | 900 MV @ 10 MA |
| Operating Temperature: | -65°C ~ 150°C | Mounting Type: | Surface Mount |
Product Description
MMBZ5244BLT1G Zener Diode 14 V 225 mW ±5% Surface Mount SOT-23-3 (TO-236)
Specifications of MMBZ5244BLT1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Voltage - Zener (Nom) (Vz) | 14 V |
| Tolerance | ±5% |
| Power - Max | 225 mW |
| Impedance (Max) (Zzt) | 15 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 10 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | MMBZ5244 |
Features of MMBZ5244BLT1G
• 225 mW Rating on FR−4 or FR−5 Board
• Zener Voltage Range − 2.4 V to 91 V
• Package Designed for Optimal Automated Board Assembly
• Small Package Size for High Density Applications
• ESD Rating of Class 3 (> 16 KV) per Human Body Model
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of MMBZ5244BLT1G
This series of Zener diodes is offered in the convenient, surface mount plastic SOT−23 package.
Environmental & Export Classifications of MMBZ5244BLT1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0050 |
