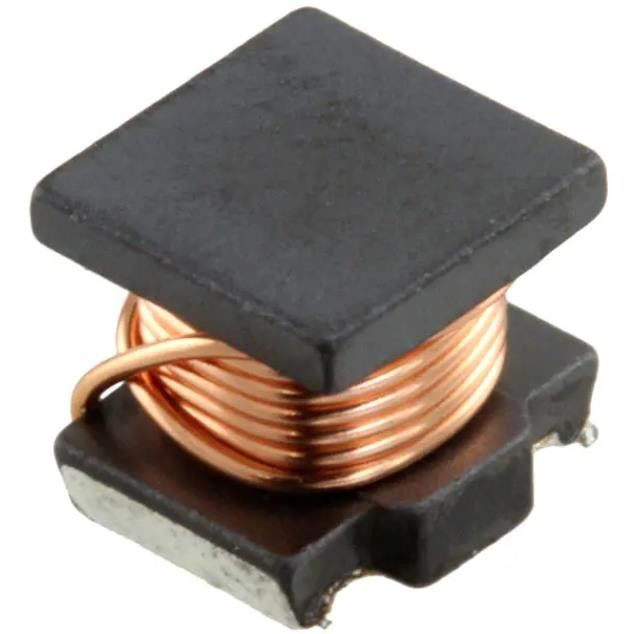

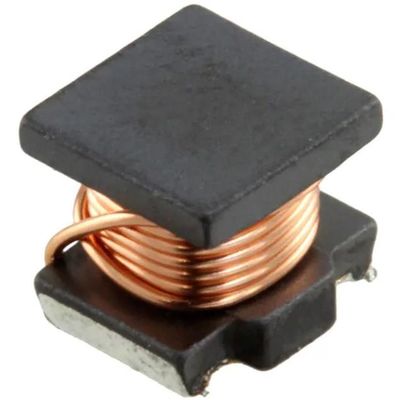

LQH55DN6R8M03L 6.8uH Unshielded Drum Core Wirewound Inductor 2 A 103.6mOhm
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LQH55DN6R8M03L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | 1 | Voltage - Input (Max): | 10V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 1.25V | Voltage - Output (Max): | 9V |
| Current - Output: | 1A | Current - Quiescent (Iq): | 55 µA |
| Current - Supply (Max): | 100 µA | PSRR: | 55dB (120Hz) |
| High Light: | LQH55DN6R8M03L,Unshielded Drum Core Wirewound Inductor |
||
Product Description
LQH55DN6R8M03L 6.8 µH Unshielded Drum Core Wirewound Inductor 2 A 103.6mOhm
Specifications of LQH55DN6R8M03L
| TYPE | DESCRIPTION |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Murata Electronics |
| Series | LQH55 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 0.083333333 |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 103.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 25MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 2220 (5750 Metric) |
| Supplier Device Package | 2220 (5650 Metric) |
| Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Base Product Number | LQH55DN |
Features of LQH55DN6R8M03L
・Operating Temperature Range -40 to +80°C
・Storage Temperature Range -40 to +85°C
Applications of LQH55DN6R8M03L
This reference specification applies to LQH55DN Series, Chip coil (Chip Inductors).
Environmental & Export Classifications of LQH55DN6R8M03L
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.50.4000 |
