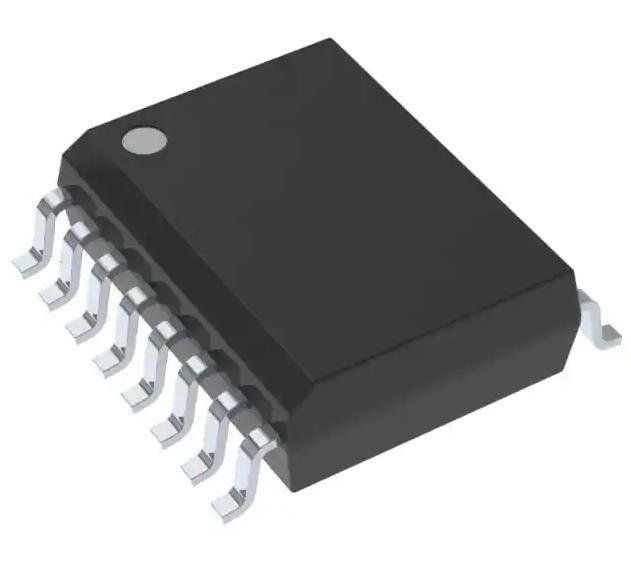

ISO1050DWR 1/1 Transceiver, Isolated Half CANbus 16-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ISO1050DWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Transceiver, Isolated | Protocol: | CANbus |
|---|---|---|---|
| Number Of Drivers/Receivers: | 1:1 | Duplex: | Half |
| Receiver Hysteresis: | 150 MV | Data Rate: | 1Mbps |
| Voltage - Supply: | 3V ~ 5.5V | Operating Temperature: | -55°C ~ 105°C |
Product Description
ISO1050DWR 1/1 Transceiver, Isolated Half CANbus 16-SOIC
Specifications of ISO1050DWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Transceiver, Isolated |
| Protocol | CANbus |
| Number of Drivers/Receivers | 1:1 |
| Duplex | Half |
| Receiver Hysteresis | 150 mV |
| Data Rate | 1Mbps |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ISO1050 |
Features of ISO1050DWR
• Meets the Requirements of ISO11898-2
• 5000-VRMS Isolation (ISO1050DW)
• 2500-VRMS Isolation (ISO1050DUB)
• Fail-Safe Outputs
• Low Loop Delay: 150 ns (Typical), 210 ns (Maximum)
• 50-kV/μs Typical Transient Immunity
• Bus-Fault Protection of –27 V to 40 V
• Driver (TXD) Dominant Time-out Function
• I/O Voltage Range Supports 3.3-V and 5-V Microprocessors
• VDE Approval per DIN VDE V 0884-11:2017-01 and DIN EN 61010-1
• UL 1577 Approved
• CSA Approved for IEC 60950-1, IEC 61010-1, IEC 60601-1 3rd Ed (Medical)
• TUV 5-KVRMS Reinforced Insulation Approval for EN/UL/CSA 60950-1 (ISO1050DW-Only)
• CQC Reinforced Insulation per GB4843.1-2011 (ISO1050DW-Only)
• Typical 25-Year Life at Rated Working Voltage (see Application Report SLLA197 and Life Expectancy vs Working Voltage)
Applications of ISO1050DWR
• Industrial automation, control, sensors, and drive systems
• Building and climate control (HVAC) automation
• Security systems
• Transportation
• Medical
• Telecom
• CAN bus standards such as CANopen, DeviceNet, NMEA2000, ARINC825, ISO11783, CAN Kingdom, CANaerospace
Environmental & Export Classifications of ISO1050DWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
