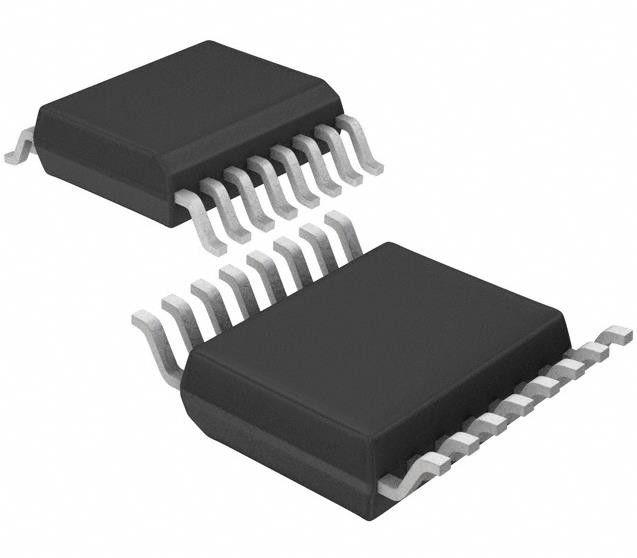

ICS8305AGILFT Clock Fanout Buffer Multiplexer IC 2:4 350 MHz 16-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ICS8305AGILFT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Package: | Tape & Reel (TR) | Type: | Fanout Buffer (Distribution), Multiplexer |
|---|---|---|---|
| Number Of Circuits: | 1 | Ratio - Input:Output: | 2:04 |
| Differential - Input:Output: | Yes/No | Input: | HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL, SSTL |
| Output: | LVCMOS, LVTTL | Frequency - Max: | 350 MHz |
Product Description
ICS8305AGILFT Clock Fanout Buffer Multiplexer IC 2:4 350 MHz 16-TSSOP
Specifications of ICS8305AGILFT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Buffers, Drivers | |
| Mfr | Renesas Electronics America Inc |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Last Time Buy |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 |
| Ratio - Input:Output | 2:04 |
| Differential - Input:Output | Yes/No |
| Input | HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL, SSTL |
| Output | LVCMOS, LVTTL |
| Frequency - Max | 350 MHz |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | 8305A |
Features of ICS8305AGILFT
• 4 LVCMOS/LVTTL outputs
• Selectable differential or LVCMOS/LVTTL clock inputs
• CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, HCSL, SSTL
• LVCMOS_CLK supports the following input types: LVCMOS, LVTTL
• Maximum output frequency: 350MHz
• Output skew: 40ps (maximum)
• Part-to-part skew: 700ps (maximum)
• Additive phase jitter, RMS: 0.04ps (typical)
• 3.3V core, 3.3V, 2.5V or 1.8V output operating supply
• -40°C to 85°C ambient operating temperature
• Lead-Free package fully RoHS compliant
Applications of ICS8305AGILFT
The ICS8305I is a low skew, 1-to-4, Differential/LVCMOS-toLVCMOS/LVTTL Fanout Buffer.
Environmental & Export Classifications of ICS8305AGILFT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
