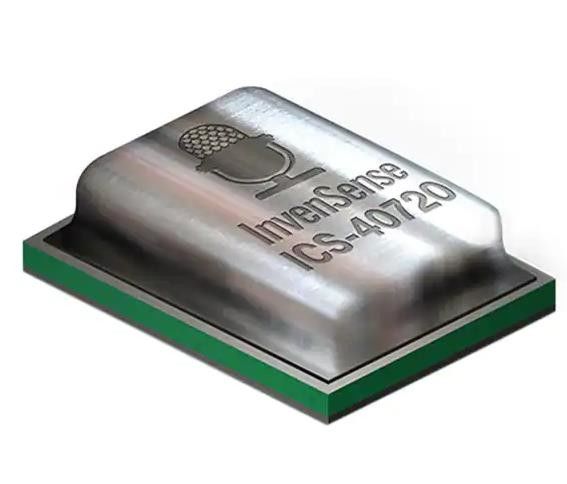

ICS-40720 75 Hz ~ 20 kHz Analog Microphone MEMS 1.5 V ~ 3.63 V Omnidirectional Solder
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ICS-40720 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | MEMS (Silicon) | Output Type: | Analog |
|---|---|---|---|
| Direction: | Omnidirectional | Frequency Range: | 75 Hz ~ 20 KHz |
| Sensitivity: | -38dB ±2dB @ 94dB SPL | S/N Ratio: | 70dB |
| Voltage Range: | 1.5 V ~ 3.63 V | Current - Supply: | 375 µA |
Product Description
ICS-40720 75 Hz ~ 20 kHz Analog Microphone MEMS 1.5 V ~ 3.63 V Omnidirectional Solder
Specifications of ICS-40720
| TYPE | DESCRIPTION |
| Category | Audio Products |
| Microphones | |
| Mfr | TDK InvenSense |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 75 Hz ~ 20 kHz |
| Sensitivity | -38dB ±2dB @ 94dB SPL |
| S/N Ratio | 70dB |
| Voltage Range | 1.5 V ~ 3.63 V |
| Current - Supply | 375 µA |
| Port Location | Bottom |
| Termination | Solder Pads |
| Size / Dimension | 0.157" L x 0.118" W (4.00mm x 3.00mm) |
| Height (Max) | 0.051" (1.30mm) |
| Shape | Rectangular |
Features of ICS-40720
• Ultra-High 70 dBA SNR
• −32 dBV Differential Sensitivity, −38 dBV SingleEnded Sensitivity
• ±2 dB Sensitivity Tolerance
• Small 4 × 3 × 1.2 mm Surface-Mount Package
• Non-Inverted Signal Output
• Extended Frequency Response from 75 Hz to 20 kHz
• Enhanced RF Performance
• 285 µA Current Consumption
• 124 dB SPL Acoustic Overload Point
• −77 dBV PSR
• Compatible with Sn/Pb and Pb-Free Solder Processes
• RoHS/WEEE Compliant
Applications of ICS-40720
• Smartphones
• Tablet Computers
• Teleconferencing Systems
• Digital Still and Video Cameras
• Bluetooth Headsets
• Security and Surveillance
• Microphone Arrays
• Voice Control and Activation
Environmental & Export Classifications of ICS-40720
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8518.10.8030 |
