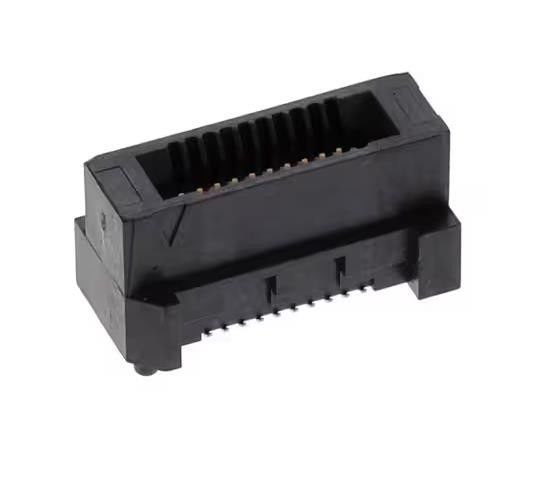

HSEC8-110-01-S-DV-A-PE-K-TR 20 Position Female Connector Dual Edge Gold
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | HSEC8-110-01-S-DV-A-PE-K-TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | Board Guide | Gender: | Female |
|---|---|---|---|
| Number Of Positions/Bay/Row: | 10 | Number Of Positions: | 20 |
| Card Thickness: | 0.062" (1.57mm) | Number Of Rows: | 2 |
| Pitch: | 0.031" (0.80mm) | Read Out: | Dual |
Product Description
HSEC8-110-01-S-DV-A-PE-K-TR 20 Position Female Connector Dual Edge Gold
Specifications of HSEC8-110-01-S-DV-A-PE-K-TR
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Card Edge Connectors | |
| Edgeboard Connectors | |
| Mfr | Samtec Inc. |
| Series | Edge Rate™ HSEC8 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 10 |
| Number of Positions | 20 |
| Card Thickness | 0.062" (1.57mm) |
| Number of Rows | 2 |
| Pitch | 0.031" (0.80mm) |
| Read Out | Dual |
| Features | Board Guide |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Type | Cantilever |
| Color | Black |
| Flange Feature | - |
| Operating Temperature | -55°C ~ 125°C |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Base Product Number | HSEC8-110 |
Features of HSEC8-110-01-S-DV-A-PE-K-TR
• 56 Gbps PAM4 performance
• PCI Express® 3.0, 4.0 and 5.0
• Edge Rate® contacts optimized for signal integrity performance and cycle life
• Up to 200 positions available
• Vertical, right-angle, edge mount, pass-through orientations
• Power/signal combo, press-fit tails, rugged weld tabs, locks and latches
• Mating cable assemblies available
Environmental & Export Classifications of HSEC8-110-01-S-DV-A-PE-K-TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
