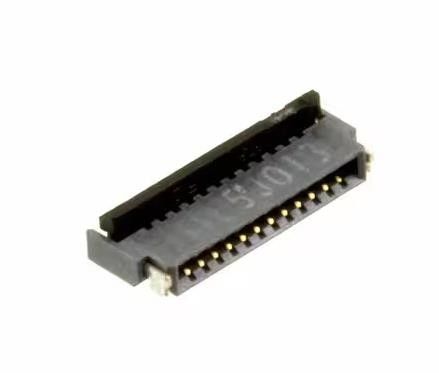

FH34SRJ-12S-0.5SH(50) 12 Position FFC FPC Connector Contacts Top and Bottom 0.020"
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FH34SRJ-12S-0.5SH(50) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Positions: | 12 | Pitch: | 0.020" (0.50mm) |
|---|---|---|---|
| Current - Average Rectified (Io): | 8A | Termination: | Solder |
| FFC, FCB Thickness: | 0.30mm | Height Above Board: | 0.039" (1.00mm) |
| Locking Feature: | Rotary Lock, Backlock | Contact Material: | Phosphor Bronze |
Product Description
FH34SRJ-12S-0.5SH(50) 12 Position FFC FPC Connector Contacts Top and Bottom 0.020"
Specifications of FH34SRJ-12S-0.5SH(50)
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| Mfr | Hirose Electric Co Ltd |
| Series | FH34SRJ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom |
| Number of Positions | 12 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.039" (1.00mm) |
| Locking Feature | Rotary Lock, Backlock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Polyamide (PA), Nylon |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | 1.97µin (0.050µm) |
| Housing Color | Gray |
| Actuator Color | Black |
| Mating Cycles | 20 |
| Base Product Number | FH34SRJ |
Environmental & Export Classifications of FH34SRJ-12S-0.5SH(50)
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4051 |
