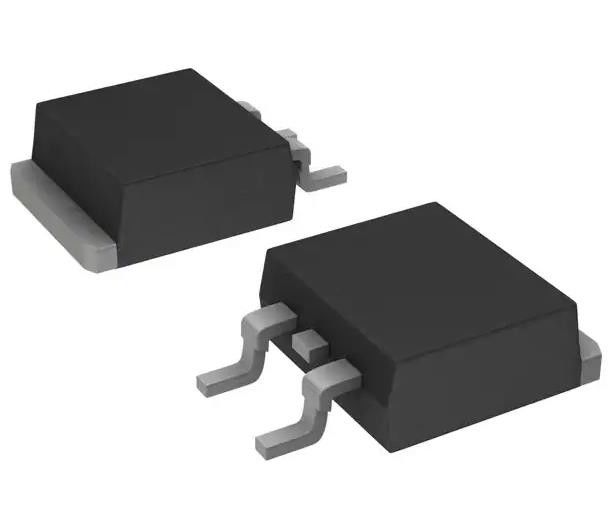

FESB8DTHE3 - 81 Diode 200 V 8A Surface Mount TO-263AB (D²PAK)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FESB8DTHE3 - 81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Technology: | Standard | Voltage - DC Reverse (Vr) (Max): | 200 V |
|---|---|---|---|
| Current - Average Rectified (Io): | 8A | Voltage - Forward (Vf) (Max) @ If: | 950 MV @ 8 A |
| Speed: | Fast Recovery =< 500ns, > 200mA (Io) | Reverse Recovery Time (trr): | 35 Ns |
| Current - Reverse Leakage @ Vr: | 10 µA @ 200 V | Operating Temperature - Junction: | -55°C ~ 150°C |
Product Description
FESB8DTHE3 - 81 Diode 200 V 8A Surface Mount TO-263AB (D²PAK)
Specifications of FESB8DTHE3 - 81
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AB (D²PAK) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | FESB8 |
Features of FESB8DTHE3 - 81
• Glass passivated chip junction
• Ultrafast recovery time
• Low switching losses, high efficiency
• Low leakage current
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
• Solder dip 260 °C, 40 s (for TO-220AC and ITO-220AC package)
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Applications of FESB8DTHE3 - 81
For use in high frequency rectifier of switching mode power supplies, inverters, freewheeling diodes, dc-to-dc converters, and other power switching application.
Environmental & Export Classifications of FESB8DTHE3 - 81
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
