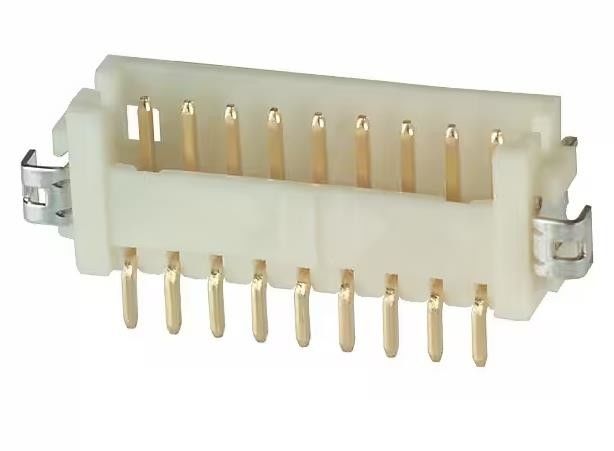

DF13A-9P-1.25H(51) Connector Header Surface Mount, Right Angle 9 position 0.049
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DF13A-9P-1.25H(51) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Positions Loaded: | All | Number Of Rows: | 1 |
|---|---|---|---|
| Number Of Positions: | 9 | Style: | Board To Cable/Wire |
| Shrouding: | Shrouded - 4 Wall | Mounting Type: | Surface Mount, Right Angle |
| Termination: | Solder | Fastening Type: | Detent Lock |
Product Description
DF13A-9P-1.25H(51) Connector Header Surface Mount, Right Angle 9 position 0.049
Specifications of DF13A-9P-1.25H(51)
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | Hirose Electric Co Ltd |
| Series | DF13 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.142" (3.60mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Solder Retention |
| Operating Temperature | -35°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Beige |
| Current Rating (Amps) | 1A |
| Voltage Rating | 150V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | DF13A |
Features of DF13A-9P-1.25H(51)
1. Miniature Size
2. Multi-contact
3. Correspond to Automatic Mounting
Applications of DF13A-9P-1.25H(51)
Note PC, mobile terminal, miniature type business equipment, and other various consumer equipment, including video camera
Environmental & Export Classifications of DF13A-9P-1.25H(51)
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
