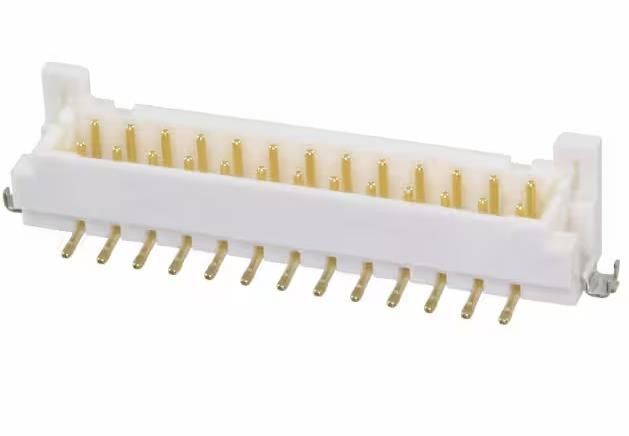

DF11C-26DP-2V(57) Connector Header Surface Mount 26 position 0.079" (2.00mm)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DF11C-26DP-2V(57) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Pitch - Mating: | 0.079" (2.00mm) | Contact Type: | Male Pin |
|---|---|---|---|
| Number Of Positions: | 26 | Number Of Rows: | 2 |
| Row Spacing - Mating: | 0.079" (2.00mm) | Shrouding: | Shrouded - 4 Wall |
| Insulation Height: | 0.283" (7.19mm) | Contact Shape: | Circular |
Product Description
DF11C-26DP-2V(57) Connector Header Surface Mount 26 position 0.079" (2.00mm)
Specifications of DF11C-26DP-2V(57)
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | Hirose Electric Co Ltd |
| Series | DF11 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.283" (7.19mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Pick and Place, Solder Retention |
| Operating Temperature | -30°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Beige |
| Current Rating (Amps) | 2A |
| Voltage Rating | 250V |
| Mated Stacking Heights | 8.2mm, 8.45mm, 9.55mm |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | DF11C |
Features of DF11C-26DP-2V(57)
■ Protection of 4 lines
■ Peak reverse voltage: VRRM = 9 V per diode
■ Very low capacitance per diode: C < 5 pF
■ Very low leakage current: IR < 1 µA
Applications of DF11C-26DP-2V(57)
■ Sensitive logic input protection
■ Microprocessor based equipment
■ Audio / video inputs
■ Portable electronics
■ Networks
■ ISDN equipment
■ USB interface
Environmental & Export Classifications of DF11C-26DP-2V(57)
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
