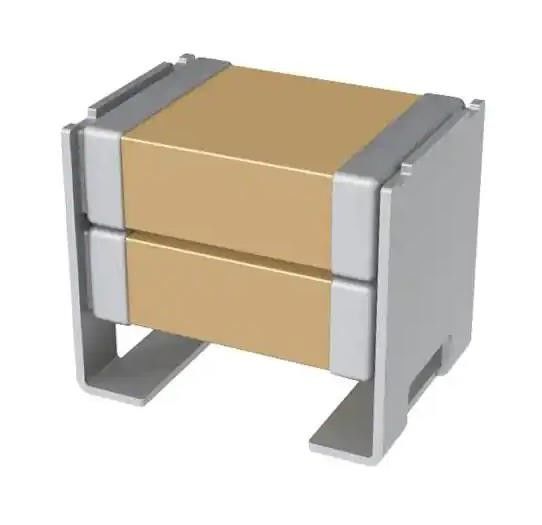

C2220C476M3R2C7186 47 µF ±20% 25V Ceramic Capacitor X7R Stacked SMD, 2 J-Lead
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | C2220C476M3R2C7186 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | Low ESL (Stacked) | Capacitance: | 47 µF |
|---|---|---|---|
| Tolerance: | ±20% | Voltage - Rated: | 25V |
| Temperature Coefficient: | X7R | Operating Temperature: | -55°C ~ 125°C |
| Applications: | Boardflex Sensitive | Mounting Type: | Surface Mount, MLCC |
Product Description
C2220C476M3R2C7186 47 µF ±20% 25V Ceramic Capacitor X7R Stacked SMD, 2 J-Lead
Specifications of C2220C476M3R2C7186
| TYPE | DESCRIPTION |
| Category | Capacitors |
| Ceramic Capacitors | |
| Mfr | KEMET |
| Series | KPS SMD Comm X7R |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25V |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | Low ESL (Stacked) |
| Ratings | - |
| Applications | Boardflex Sensitive |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | Stacked SMD, 2 J-Lead |
| Size / Dimension | 0.236" L x 0.197" W (6.00mm x 5.00mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.217" (5.50mm) |
| Lead Spacing | - |
| Lead Style | J-Lead |
| Base Product Number | C2220C |
Features of C2220C476M3R2C7186
• −55°C to +125°C operating temperature range
• Reliable and robust termination system
• EIA 1210, 1812, and 2220 case sizes
• DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V, and 250 V
• Capacitance offerings ranging from 0.1 μF up to 47 μF
• Available capacitance tolerances of ±10% and ±20%
• Higher capacitance in the same footprint
• Potential board space savings
Applications of C2220C476M3R2C7186
Typical applications include smoothing circuits, DC/DC converters, power supplies (input/output filters), noise reduction (piezoelectric/mechanical), circuits with a direct battery or power source connection, critical and safety relevant circuits without (integrated) current limitation and any application that is subject to high levels of board flexure or temperature cycling. Markets include industrial, military, automotive and telecom.
Environmental & Export Classifications of C2220C476M3R2C7186
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8532.23.0020 |
