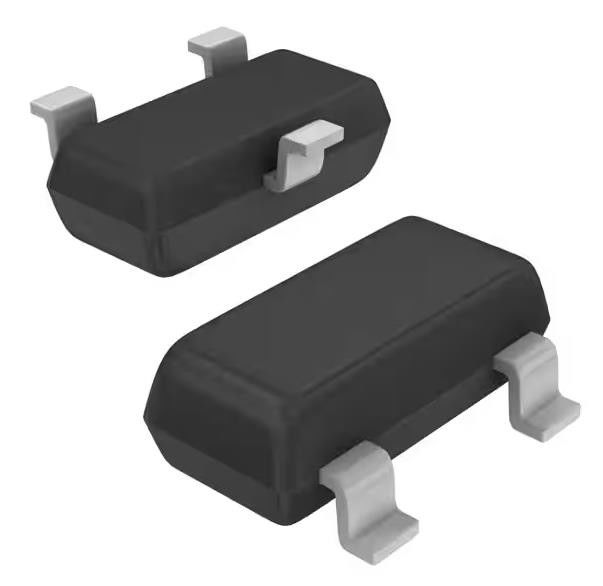

BCW32LT1G Bipolar Transistor NPN 32 V 100 mA 225 mW Surface Mount SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BCW32LT1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Current - Collector (Ic) (Max): | 100 MA | Voltage - Collector Emitter Breakdown (Max): | 32 V |
|---|---|---|---|
| Vce Saturation (Max) @ Ib, Ic: | 250mV @ 500µA, 10mA | Current - Collector Cutoff (Max): | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 200 @ 2mA, 5V | Power - Max: | 225 MW |
| Operating Temperature: | -55°C ~ 150°C (TJ) | Frequency - Transition: | - |
Product Description
BCW32LT1G Bipolar Transistor NPN 32 V 100 mA 225 mW Surface Mount SOT-23-3
Specifications of BCW32LT1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 32 V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA, 5V |
| Power - Max | 225 mW |
| Frequency - Transition | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | BCW32 |
Features of BCW32LT1G
• NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;
AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of BCW32LT1G
* High-speed switching
* General-purpose switching
Environmental & Export Classifications of BCW32LT1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
