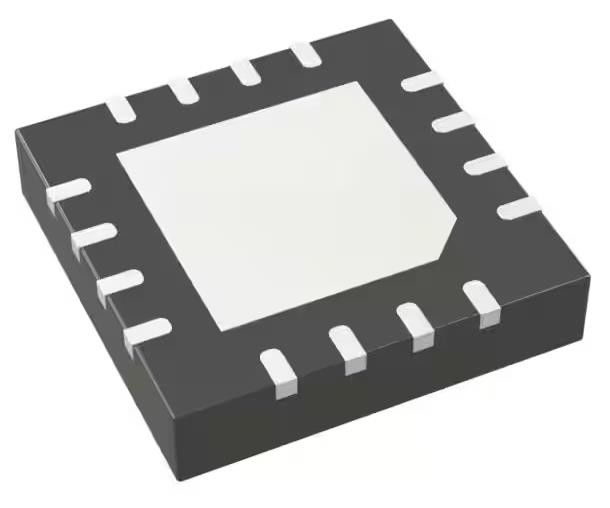

AD8363ACPZ-R7 RF Detector IC Cellular 50Hz ~ 6GHz -50dBm ~ 0dBm ±0.5dB 16-WQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD8363ACPZ-R7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Frequency: | 50Hz ~ 6GHz | RF Type: | Cellular, GSM, CDMA, W-CDMA |
|---|---|---|---|
| Input Range: | -50dBm ~ 0dBm | Accuracy: | ±0.5dB |
| Voltage - Supply: | 4.5V ~ 5.5V | Current - Supply: | 60 MA |
| Mounting Type: | Surface Mount | Package / Case: | 16-WQFN Exposed Pad, CSP |
Product Description
AD8363ACPZ-R7 RF Detector IC Cellular 50Hz ~ 6GHz -50dBm ~ 0dBm ±0.5dB 16-WQFN
Specifications of AD8363ACPZ-R7
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Detectors | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Frequency | 50Hz ~ 6GHz |
| RF Type | Cellular, GSM, CDMA, W-CDMA |
| Input Range | -50dBm ~ 0dBm |
| Accuracy | ±0.5dB |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Supply | 60 mA |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (4x4) |
| Base Product Number | AD8363 |
Features of AD8363ACPZ-R7
*Accurate rms-to-dc conversion from 50 Hz to 6 GHz
*Single-ended input dynamic range of >50 dB
*No balun or external input tuning required
*Waveform and modulation independent RF power detection
*Linear-in-decibels output, scaled: 52 mV/dB
*Log conformance error: <±0.15 dB
*Temperature stability: <±0.5 dB
*Voltage supply range: 4.5 V to 5.5 V
*Operating temperature range: −40°C to +125°C
*Power-down capability to 1.5 mW
*Small footprint, 4 mm × 4 mm, LFCSP
Applications of AD8363ACPZ-R7
*Power amplifier linearization/control loops
*Multi-Standard, Multi-Carrier Wireless Infrastructure (MCGSM, CDMA, WCDMA, TD-SCDMA, WiMAX, LTE)
*Transmitter power control
*Transmitter signal strength indication (TSSI)
*RF instrumentation
Environmental & Export Classifications of AD8363ACPZ-R7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
