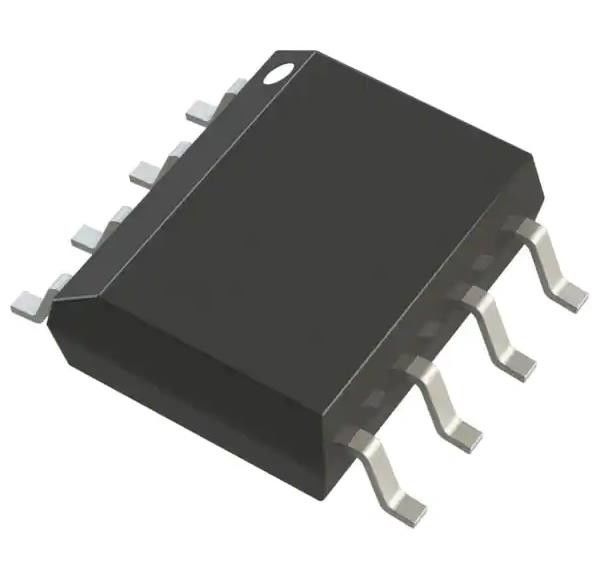

AD797ARZ-REEL General Purpose Amplifier 1 Circuit 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD797ARZ-REEL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Amplifier Type: | General Purpose | Number Of Circuits: | 1 |
|---|---|---|---|
| Output Type: | - | Slew Rate: | 20V/µs |
| Gain Bandwidth Product: | 110 MHz | -3db Bandwidth: | 8 MHz |
| Current - Input Bias: | 250 NA | Voltage - Input Offset: | 25 µV |
Product Description
AD797ARZ-REEL General Purpose Amplifier 1 Circuit 8-SOIC
Specifications of AD797ARZ-REEL
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 20V/µs |
| Gain Bandwidth Product | 110 MHz |
| -3db Bandwidth | 8 MHz |
| Current - Input Bias | 250 nA |
| Voltage - Input Offset | 25 µV |
| Current - Supply | 8.2mA |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AD797 |
Features of AD797ARZ-REEL
*Low noise
*0.9 nV/√Hz typical (1.2 nV/√Hz maximum) input voltage noise at 1 kHz
*50 nV p-p input voltage noise, 0.1 Hz to 10 Hz
*Low distortion
−120 dB total harmonic distortion at 20 kHz
*Excellent ac characteristics
-800 ns settling time to 16 bits (10 V step)
-110 MHz gain bandwidth (G = 1000)
-8 MHz bandwidth (G = 10)
-280 kHz full power bandwidth at 20 V p-p
-20 V/μs slew rate
*Excellent dc precision
-80 μV maximum input offset voltage
-1.0 μV/°C VOS drift
*Specified for ±5 V and ±15 V power supplies
*High output drive current of 50 mA
Applications of AD797ARZ-REEL
*Professional audio preamplifiers
*IR, CCD, and sonar imaging systems
*Spectrum analyzers
*Ultrasound preamplifiers
*Seismic detectors
*Σ-Δ ADC/DAC buffers
Environmental & Export Classifications of AD797ARZ-REEL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
