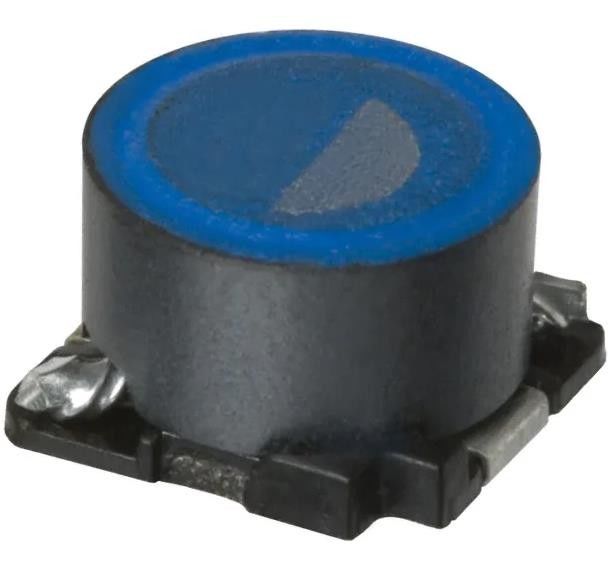

SLF7045T-470MR90-H 47 µH Shielded Drum Core Wirewound Inductor 900 mA 216mOhm
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SLF7045T-470MR90-H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Drum Core, Wirewound | Material - Core: | Ferrite |
|---|---|---|---|
| Inductance: | 47 µH | Tolerance: | ±20% |
| Current Rating (Amps): | 900 MA | Current - Saturation (Isat): | 900mA |
| Shielding: | Shielded | DC Resistance (DCR): | 216mOhm Max |
Product Description
SLF7045T-470MR90-H 47 µH Shielded Drum Core Wirewound Inductor 900 mA 216mOhm
Specifications of SLF7045T-470MR90-H
| TYPE | DESCRIPTION |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | TDK Corporation |
| Series | SLF-H |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | 900mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 216mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Features of SLF7045T-470MR90-H
* Magnetic shield type wound inductor for power circuits.
* Product lineup allows for various usages.
* Operating temperature range: –40 to +125°C (including self-temperature rise)
Applications of SLF7045T-470MR90-H
* Administrator:
* Automotive-related equipment (ECM, airbags, headlights, electronic power steering, meters, ABS, other)
* Application guides: Automotive (xEV)
Environmental & Export Classifications of SLF7045T-470MR90-H
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
