TPD2E009DBZR 8V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV70233DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Unidirectional Channels: | 2 | Voltage - Reverse Standoff (Typ): | 5.5V (Max) |
|---|---|---|---|
| 5.5V (Max): | 7 V | Voltage - Clamping (Max) @ Ipp: | 8V |
| Current - Peak Pulse (10/1000µs): | 1A (8/20µs) | Power - Peak Pulse: | 45W |
| Power Line Protection: | Yes | Applications: | Ethernet, HDMI |
Product Description

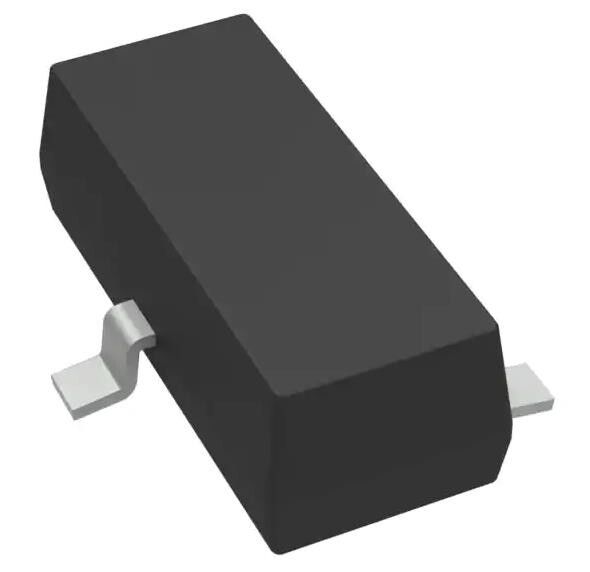

TPD2E009DBZR 8V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3
Specifications of TPD2E009DBZR
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 7V |
| Voltage - Clamping (Max) @ Ipp | 8V |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Power - Peak Pulse | 45W |
| Power Line Protection | Yes |
| Applications | Ethernet, HDMI |
| Capacitance @ Frequency | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | TPD2E009 |
Features of TPD2E009DBZR
* Supports Data Rates up to 6 Gbps
* IEC 61000-4-2 ESD Protection
- +8-kV Contact Discharge
- +8-kV Air-Gap Discharge
* IEC 61000-4-5 Surge Protection
- 5 A (8/20 s)
* Low Capacitance
- DRT: 0.7-pF (Typ)
- DBZ: 0.9-pF (Typ)
* 0.05-pF Matching Capacitance Between theDifferential Signal Pair
* Dual-Matching TVS Diodes to Protect theDifferential Data and Clock Lines of HDMl, LVDSSATA, Ethernet, or USB Interfaces
* Space-Saving DRT and DBZ Package Options
* Flow-Through Pin Mapping for the High-SpeedLines Ensures Zero Additional Skew Due to BoardLayout While Placing the ESD-Protection ChipNear the Connector
Applications of TPD2E009DBZR
* End Equipment:
- Notebooks
- Set-Top Boxes
- Portable Computers
- DVD Players
- Media Players
* Interfaces:
- HDMI 2.0
- USB 3.0
- eSATA
- Ethernet
Environmental & Export Classifications of TPD2E009DBZR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
