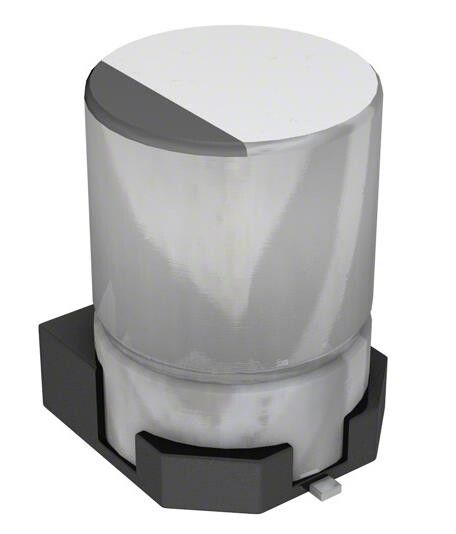

AVE107M25X16T-F 100 µF 25 V Aluminum Electrolytic Capacitors Radial Can
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AVE107M25X16T-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Capacitance: | 100 µF | Tolerance: | ±20% |
|---|---|---|---|
| Voltage - Rated: | 25 V | ESR (Equivalent Series Resistance): | 2.32Ohm @ 120Hz |
| Lifetime @ Temp.: | 2000 Hrs @ 85°C | Operating Temperature: | -40°C ~ 85°C |
| Polarization: | Polar | Applications: | General Purpose |
Product Description
AVE107M25X16T-F 100 µF 25 V Aluminum Electrolytic Capacitors Radial Can
Specifications of AVE107M25X16T-F
| TYPE | DESCRIPTION |
| Category | Capacitors |
| Aluminum Electrolytic Capacitors | |
| Mfr | Cornell Dubilier Electronics (CDE) |
| Series | AVE |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 2.32Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 124 mA @ 120 Hz |
| Ripple Current @ High Frequency | 173.6 mA @ 10 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Features of AVE107M25X16T-F
• +85 °C, Up to 2000 Hour Load Life
• Low Impedance
• Voltage Range: 4 Vdc to 100 Vdc
Applications of AVE107M25X16T-F
Type AVE capacitors are a great value for filter and bypass applications not requiring wide temperature performance or high ripple current. Their vertical cylindrical cases facilitate automatic mounting and reflow soldering and offer a significant savings over tantalum capacitors.
Environmental & Export Classifications of AVE107M25X16T-F
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8532.22.0020 |
