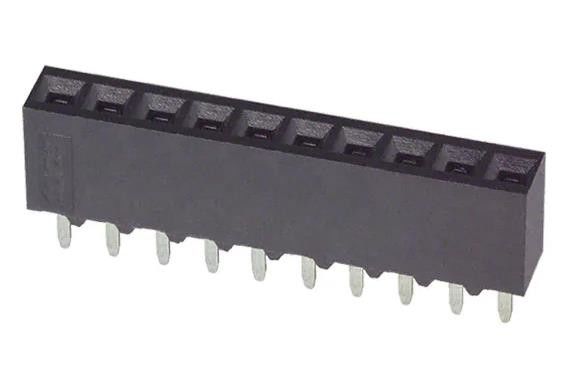

5-535541-8 10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 5-535541-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Fastening Type: | Push-Pull | Contact Finish - Mating: | Gold |
|---|---|---|---|
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) | Insulation Color: | Black |
| Insulation Height: | 0.265" (6.73mm) | Contact Length - Post: | 0.125" (3.18mm) |
| Operating Temperature: | -65°C ~ 125°C | Material Flammability Rating: | UL94 V-0 |
Product Description
5-535541-8 10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Specifications of 5-535541-8
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Receptacles, Female Sockets | |
| Mfr | TE Connectivity AMP Connectors |
| Series | AMPMODU Mod IV |
| Package | Tube |
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.265" (6.73mm) |
| Contact Length - Post | 0.125" (3.18mm) |
| Operating Temperature | -65°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 2A |
| Voltage Rating | - |
| Applications | - |
| Insulation Material | Polyester, Glass Filled |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Base Product Number | 535541 |
Environmental & Export Classifications of 5-535541-8
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
