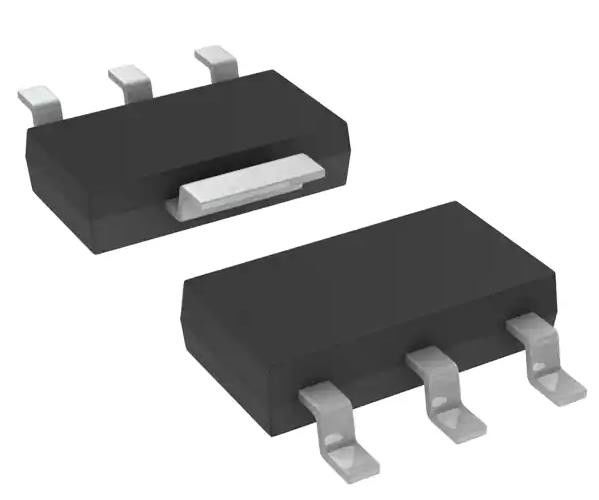

NCP1117STAT3G Linear Voltage Regulator IC Positive Adjustable 1 Output 1A SOT-223
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NCP1117STAT3G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Configuration: | Positive | Output Type: | Adjustable |
|---|---|---|---|
| Number Of Regulators: | 1 | Voltage - Input (Max): | 20V |
| Voltage - Output (Min/Fixed): | 1.25V | Voltage - Output (Max): | 18.8V |
Product Description
NCP1117STAT3G Linear Voltage Regulator IC Positive Adjustable 1 Output 1A SOT-223
Specifications of NCP1117STAT3G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 18.8V |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 73dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
| Base Product Number | NCP1117 |
Features of NCP1117STAT3G
• Output Current in Excess of 1.0 A
• 1.2 V Maximum Dropout Voltage at 800 mA Over Temperature
• Fixed Output Voltages of 1.5 V, 1.8 V, 1.9 V, 2.0 V, 2.5 V, 2.85 V,3.3 V, 5.0 V, and 12 V
• Adjustable Output Voltage Option
• No Minimum Load Requirement for Fixed Voltage Output Devices
• Reference/Output Voltage Trimmed to ±1.0%
• Current Limit, Safe Operating and Thermal Shutdown Protection
• Operation to 20 V Input
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb-Free Devices
Applications of NCP1117STAT3G
• Consumer and Industrial Equipment Point of Regulation
• Active SCSI Termination for 2.85 V Version
• Switching Power Supply Post Regulation
• Hard Drive Controllers
• Battery Chargers
