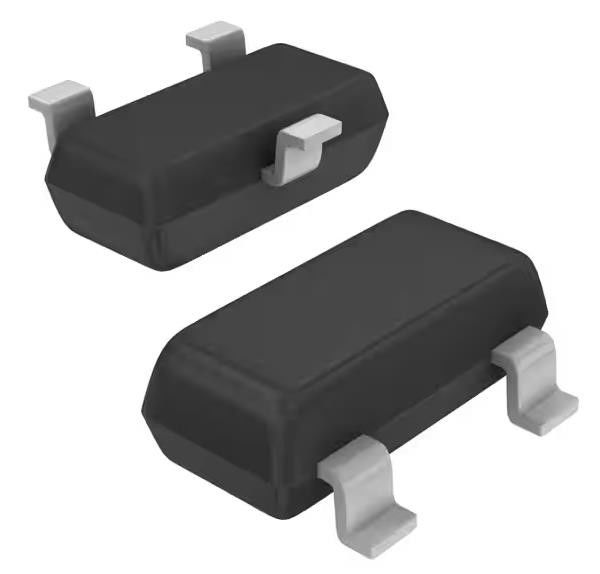

SZBZX84C15ET1G Zener Diode 15 V 225 mW ±6% Surface Mount SOT-23-3 (TO-236)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SZBZX84C15ET1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Voltage - Zener (Nom) (Vz): | 15 V | Tolerance: | ±6% |
|---|---|---|---|
| Impedance (Max) (Zzt): | 30 Ohms | Power (Watts): | 225 MW |
| Current - Reverse Leakage @ Vr: | 50 NA @ 10.5 V | Voltage - Forward (Vf) (Max) @ If: | 900 MV @ 10 MA |
Product Description
SZBZX84C15ET1G Zener Diode 15 V 225 mW ±6% Surface Mount SOT-23-3 (TO-236)
Specifications of SZBZX84C15ET1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Voltage - Zener (Nom) (Vz) | 15 V |
| Tolerance | ±6% |
| Power - Max | 225 mW |
| Impedance (Max) (Zzt) | 30 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 10.5 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | SZBZX84 |
Features of SZBZX84C15ET1G
• 250 mW Rating on FR−4 or FR−5 Board
• Zener Breakdown Voltage Range − 2.4 V to 75 V
• Package Designed for Optimal Automated Board Assembly
• Small Package Size for High Density Applications
• ESD Rating of Class 3 (> 16 kV) per Human Body Model
• Peak Power − 225 W (8 X 20 s)
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
Applications of SZBZX84C15ET1G
This series of Zener diodes is offered in the convenient, surface mount plastic SOT−23 package. These devices are designed to provide voltage regulation with minimum space requirement. They are well suited for applications such as cellular phones, hand held portables,and high density PC boards.
