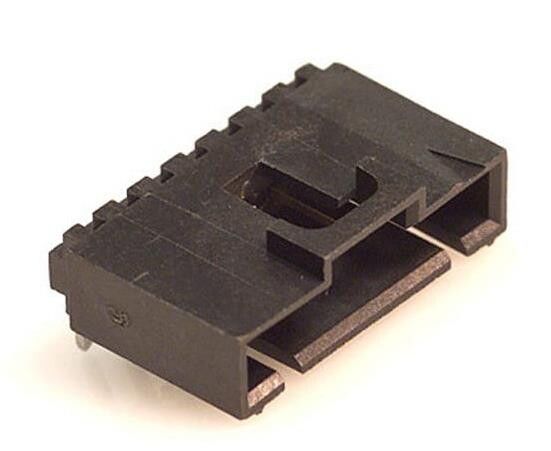

70553-0006 Connector Header Through Hole Right Angle 7 position 0.100"
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 70553-0006 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Fastening Type: | Latch Holder | Contact Length - Mating: | 0.240" (6.10mm) |
|---|---|---|---|
| Contact Length - Post: | 0.130" (3.30mm) | Insulation Height: | 0.215" (5.45mm) |
| Contact Shape: | Square | Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 15.0µin (0.38µm) | Contact Finish - Post: | Tin |
Product Description
70553-0006 Connector Header Through Hole Right Angle 7 position 0.100"
Specifications of 70553-0006
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | Molex |
| Series | SL 70553 |
| Package | Tube |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.215" (5.45mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyester, Glass Filled |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | 250V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Base Product Number | 70553 |
Environmental & Export Classifications of 70553-0006
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
