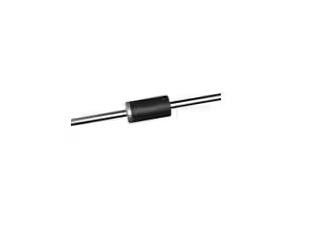

SR3010-TP Diode 100 V 3A Through Hole DO-201AD Electronic Components
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SR3010-TP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Package: | Tape & Reel (TR) | Technology: | Schottky |
|---|---|---|---|
| Voltage - DC Reverse (Vr) (Max): | 100 V | Current - Average Rectified (Io): | 3A |
| Voltage - Forward (Vf) (Max) @ If: | 850 MV @ 3 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr: | 1 MA @ 100 V | Operating Temperature - Junction: | -55°C ~ 125°C |
| High Light: | SR3010-TP,Electronic Components Diode,SR3010-TP Diode |
||
Product Description
SR3010-TP Diode 100 V 3A Through Hole DO-201AD Electronic Components
DIODE SCHOTTKY 100V 3A DO201AD
Specifications of SR3010-TP
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Single Diodes | |
| Mfr | Micro Commercial Co |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 mA @ 100 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | DO-201AD, Axial |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Base Product Number | SR3010 |
Features of SR3010-TP
• Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates Compliant. See Ordering Information)
• Low Forward Voltage Drop And Low Switching Noise
• High Current Capability And High Surge Current Capability
• Epoxy Meets UL 94 V-0 Flammability Rating
• Halogen Free Available Upon Request By Adding Suffix "-HF"
Descriptions of SR3010-TP
* Operating Junction Temperature Range: -55⁰C to +150⁰C
* Storage Temperature Range: -55⁰C to +150⁰C
* Typical Thermal Resistance: 30°C/W Junction to Ambient
Environmental & Export Classifications of SR3010-TP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8533.21.0030 |
