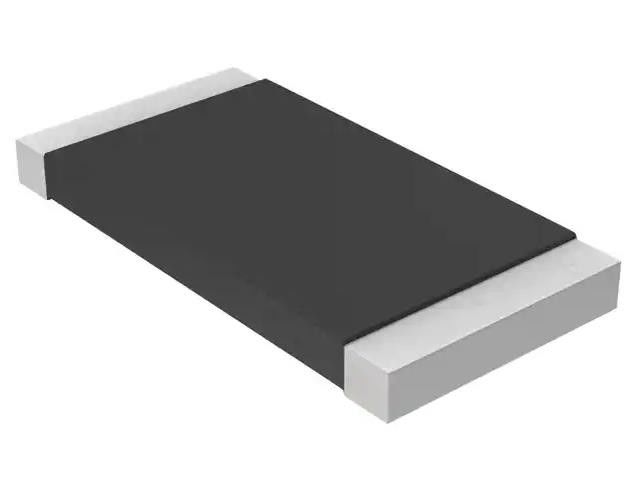

WSL2512R0125FEB 12.5 MOhms 1W Chip Resistor Anti-Sulfur Automotive Current Sense
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | WSL2512R0125FEB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Package: | Tape & Reel (TR) |
|---|---|---|---|
| Resistance: | 12.5 MOhms | Tolerance: | ±1% |
| Power (Watts): | 1W | Composition: | Metal Element |
| High Light: | WSL2512R0125FEB,Anti-Sulfur Chip Resistor,WSL2512R0125FEB Chip Resistor |
||
Product Description
WSL2512R0125FEB 12.5 mOhms ±1% 1W Chip Resistor Anti-Sulfur Automotive Current Sense
RES 12.5M OHM 1% 1W 2512
Specifications of WSL2512R0125FEB
| TYPE | DESCRIPTION |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr | Vishay Dale |
| Series | Power Metal Strip® |
| Package | Tape & Reel (TR) |
| Resistance | 12.5 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 1W |
| Composition | Metal Element |
| Features | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±75ppm/°C |
| Operating Temperature | -65°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.250" L x 0.125" W (6.35mm x 3.18mm) |
| Height - Seated (Max) | 0.035" (0.89mm) |
Features of WSL2512R0125FEB
• All welded construction of the Power Metal Strip® resistors are ideal for all types of current sensing, voltage division and pulse applications
• Proprietary processing technique produces extremely low resistance values (down to 0.0005 Ω)
• Sulfur resistance by construction that is unaffected by high sulfur environments
• Very low inductance 0.5 nH to 5 nH
• Low thermal EMF (< 3 μV/°C)
• AEC-Q200 qualified (1)
Descriptions of WSL2512R0125FEB
This datasheet provides information about parts that are RoHS-compliant and / or parts that are non-RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details.
Environmental & Export Classifications of WSL2512R0125FEB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8533.21.0030 |
