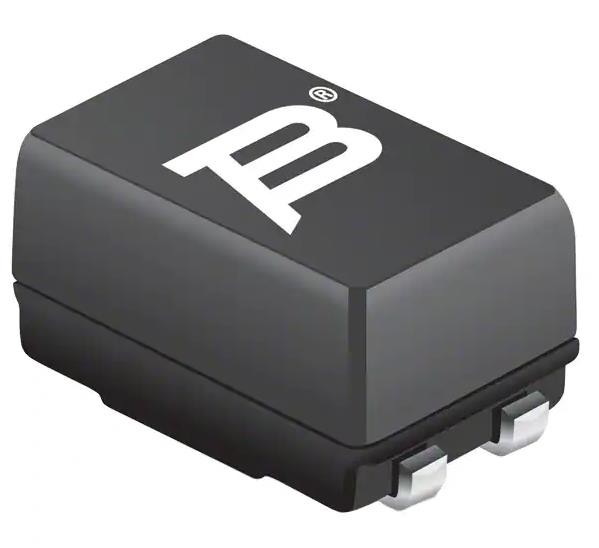

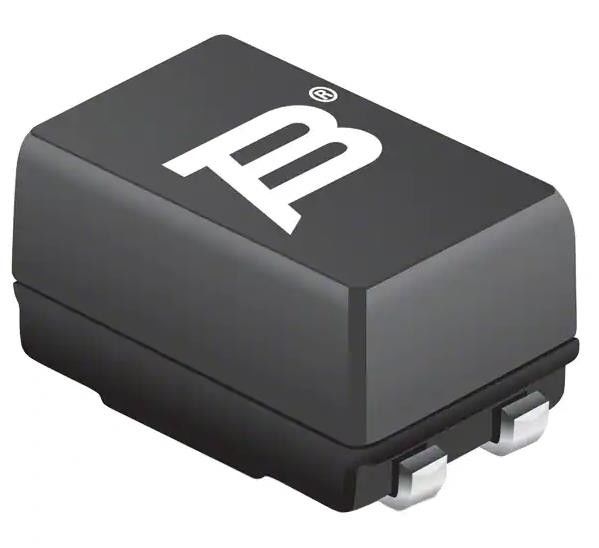

SRF0905-500Y 50µH 1kHz 2 Line Common Mode Choke 1.5 KOhms 20 MHz 800mA 320mOhm
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SRF0905-500Y |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Filter Type: | Signal Line | Number Of Lines: | 2 |
|---|---|---|---|
| Impedance @ Frequency: | 1.5 KOhms @ 20 MHz | Inductance @ Frequency: | 50 µH @ 1 KHz |
| Current Rating (Max): | 800mA | DC Resistance (DCR) (Max): | 320mOhm |
| Voltage Rating - DC: | 80V | Operating Temperature: | -40°C ~ 105°C |
| High Light: | SRF0905-500Y,2 Line Common Mode Choke |
||
Product Description
SRF0905-500Y 50µH 1kHz 2 Line Common Mode Choke 1.5 kOhms 20 MHz 800mA 320mOhm
CMC 50UH 800MA 2LN 1.5KOHM SMD
Specifications of SRF0905-500Y
| TYPE | DESCRIPTION |
| Category | Common Mode Chokes |
| Mfr | Bourns Inc. |
| Series | SRF0905 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 1.5 kOhms @ 20 MHz |
| Inductance @ Frequency | 50 µH @ 1 kHz |
| Current Rating (Max) | 800mA |
| DC Resistance (DCR) (Max) | 320mOhm |
| Voltage Rating - DC | 80V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.362" L x 0.236" W (9.20mm x 6.00mm) |
| Height (Max) | 0.209" (5.30mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | SRF0905 |
Features of TPS5430MDDAREP
* Current rating up to 1.6 A
* Inductance range: 10 to 6500 μH
* Frequency range to 300 MHz
* RoHS compliant*
Applications of TPS5430MDDAREP
* EMI suppression
Environmental & Export Classifications of SRF0905-500Y
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
