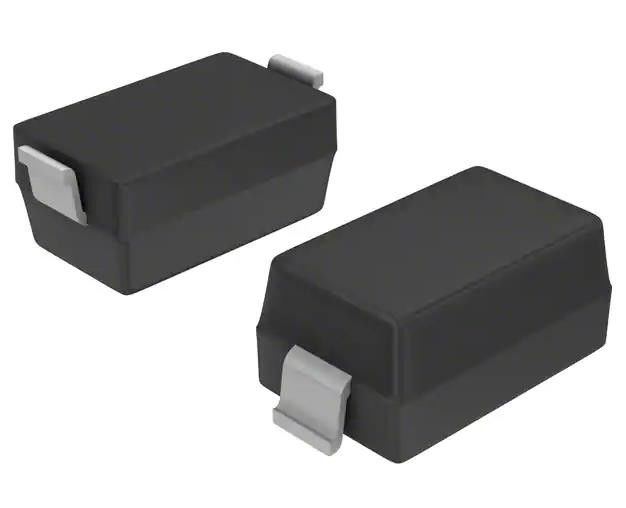

BAT46W-E3-08 Diode 100 V 150mA Surface Mount SOD-123 Electronic Components
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BAT46W-E3-08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Technology: | Schottky | Voltage - DC Reverse (Vr) (Max): | 100 V |
|---|---|---|---|
| Current - Average Rectified (Io): | 150mA | Voltage - Forward (Vf) (Max) @ If: | 1 V @ 250 MA |
| Speed: | Small Signal =< 200mA (Io), Any Speed | Current - Reverse Leakage @ Vr: | 5 µA @ 75 V |
| Capacitance @ Vr, F: | 10pF @ 0V, 1MHz | Mounting Type: | Surface Mount |
| High Light: | BAT46W-E3-08,Electronic Components Diode |
||
Product Description
BAT46W-E3-08 Diode 100 V 150mA Surface Mount SOD-123
DIODE SCHOTTKY 100V 150MA SOD123
Specifications of BAT46W-E3-08
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Single Diodes | |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 150mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 250 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Current - Reverse Leakage @ Vr | 5 µA @ 75 V |
| Capacitance @ Vr, F | 10pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction | 125°C (Max) |
| Base Product Number | BAT46 |
Features of BAT46W-E3-08
• For general purpose applications
• This diode features very low turn-on voltage and fast switching
• This device is protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges
• AEC-Q101 qualified available
• Base P/N-E3 - RoHS-compliant, commercial grade
• Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified
Introductions of BAT46W-E3-08
Case: SOD-123
Weight: approx. 10.3 mg
Packaging codes/options:
18/10K per 13" reel (8 mm tape), 10K/box
08/3K per 7" reel (8 mm tape), 15K/box
Environmental & Export Classifications of BAT46W-E3-08
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
