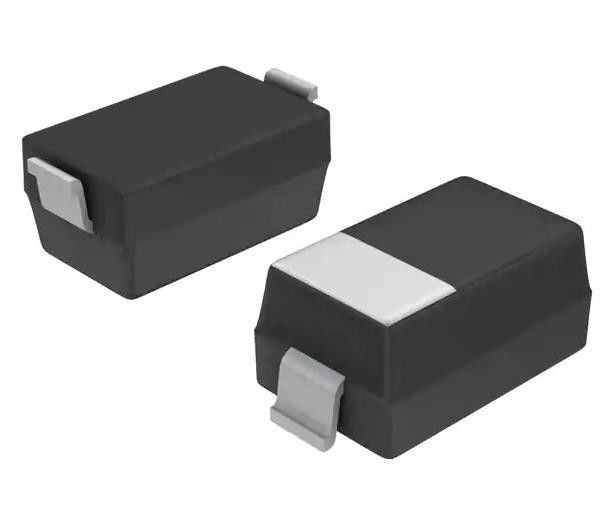

MBR0540T1G Diode 40 V 500mA Surface Mount SOD-123 Electronic Components
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MBR0540T1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Package: | Tape & Reel (TR) | Technology: | Schottky |
|---|---|---|---|
| Voltage - DC Reverse (Vr) (Max): | 40 V | Current - Average Rectified (Io): | 500mA |
| Voltage - Forward (Vf) (Max) @ If: | 510 MV @ 500 MA | Current - Reverse Leakage @ Vr: | 20 µA @ 40 V |
| Operating Temperature - Junction: | -55°C ~ 150°C | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| High Light: | MBR0540T1G,MBR0540T1G Diode,SOD-123 Electronic Components |
||
Product Description
MBR0540T1G Diode 40 V 500mA Surface Mount SOD-123 Electronic Components
DIODE SCHOTTKY 40V 500MA SOD123
Specifications of MBR0540T1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Single Diodes | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 510 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 20 µA @ 40 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | MBR0540 |
Features of MBR0540T1G
* Guardring for Stress Protection
* Very Low Forward Voltage
* Epoxy Meets UL 94 V−0 @ 0.125 in
* Package Designed for Optimal Automated Board Assembly
* AEC−Q101 Qualified and PPAP Capable
* NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
* All Packages are Pb−Free*
Applications of MBR0540T1G
The Schottky Power Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop−reverse current tradeoff.
Environmental & Export Classifications of MBR0540T1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
