705510074 Connector Header Through Hole Right Angle 5 Position 0.100" 2.54mm
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 705510074 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Fastening Type: | Latch Holder | Contact Length - Mating: | 0.240" (6.10mm) |
|---|---|---|---|
| Contact Length - Post: | 0.130" (3.30mm) | Insulation Height: | 0.215" (5.45mm) |
| Contact Shape: | Square | Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) | ||
| High Light: | 705510074,Through Hole Connector Header,5P Connector Header |
||
Product Description

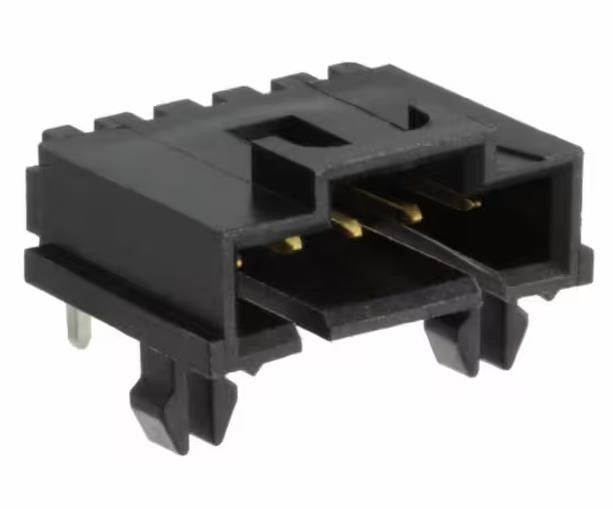

705510074 Connector Header Through Hole Right Angle 5 position 0.100" (2.54mm)
CONN HEADER R/A 5POS 2.54MM
Specifications of 705510074
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Headers, Male Pins | |
| Mfr | Molex |
| Series | SL 70551 |
| Package | Bulk |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.215" (5.45mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyester, Glass Filled |
| Features | Board Lock |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | 250V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Base Product Number | 70551 |
Features of 705510074
* Operating: -40 °C to +105 °C
* Non-Operating -40 °C to +105 °C
Applications of 705510074
* 70021, male, crimp terminal
* 70058, female box, crimp terminal
* 71851, female box, high force crimp terminal
* 70066 & 70107, single row, crimp housing
* 70450 & 74130, dual row, crimp housing
* 70400, female, single row, insulation displacement, connector assembly
* 70475 & 71178 ,male, single row, insulation displacement, connector assembly
