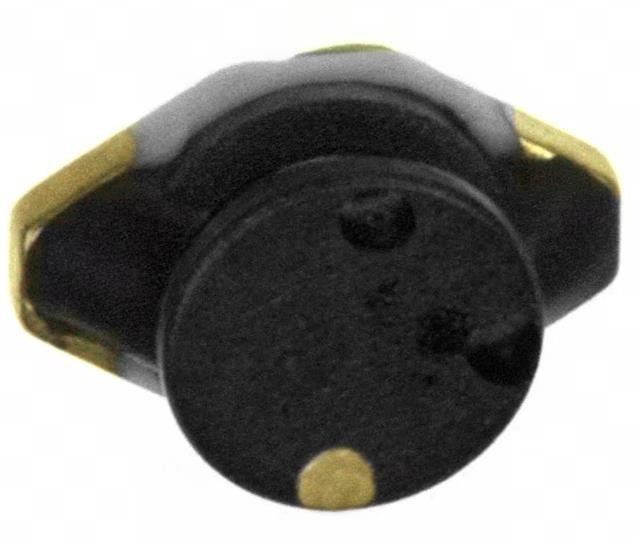

74455015 1.5 µH Unshielded Drum Core Wirewound Inductor 2.8 A 50mOhm
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 74455015 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Drum Core, Wirewound | Material - Core: | Ferrite |
|---|---|---|---|
| Inductance: | 1.5 µH | Tolerance: | ±20% |
| Current Rating (Amps): | 2.8 A | Current - Saturation (Isat): | 2.6A |
| DC Resistance (DCR): | 50mOhm Max | Operating Temperature: | -40°C ~ 100°C |
| High Light: | 74455015,Drum Core Wirewound Inductor,Unshielded Wirewound Inductor |
||
Product Description
74455015 1.5 µH Unshielded Drum Core Wirewound Inductor 2.8 A 50mOhm
FIXED IND 1.5UH 2.8A 50 MOHM SMD
Specifications of 74455015
| TYPE | DESCRIPTION |
| Category | Fixed Inductors |
| Mfr | Würth Elektronik |
| Series | WE-PD4 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.8 A |
| Current - Saturation (Isat) | 2.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 50mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 62MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Height - Seated (Max) | 0.115" (2.92mm) |
Environmental & Export Classifications of 74455015
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.50.4000 |
