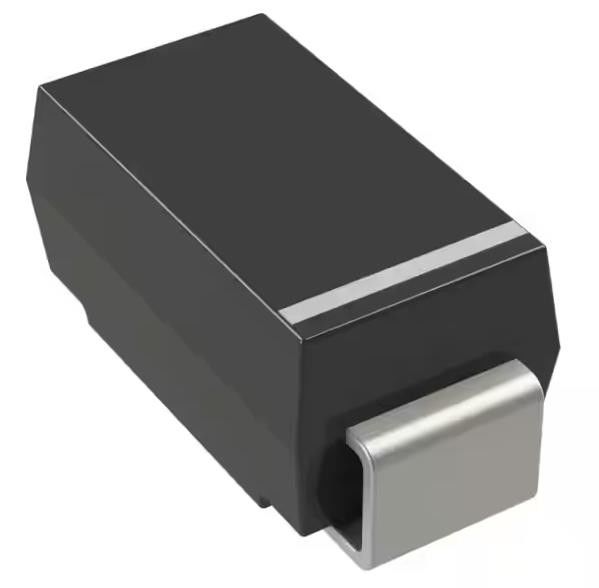

ES1B-LTP Electronic Component Diode 100 V 1A Surface Mount DO-214AC (SMA)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ES1B-LTP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Capacitance: | 1000 PF | Voltage - DC Reverse (Vr) (Max): | 100V |
|---|---|---|---|
| Current - Average Rectified (Io): | 1A | Voltage - Forward (Vf) (Max) @ If: | 950 MV @ 1 A |
| Speed: | Fast Recovery =< 500ns, > 200mA (Io) | Reverse Recovery Time (trr): | 35 Ns |
| Current - Reverse Leakage @ Vr: | 5 µA @ 100 V | Capacitance @ Vr, F: | 15pF @ 4V, 1MHz |
| High Light: | ES1B-LTP,ES1B-LTP Electronic Component Diode |
||
Product Description
ES1B-LTP Electronic Component Diode 100 V 1A Surface Mount DO-214AC (SMA)
DIODE GEN PURP 100V 1A DO214AC
Specifications of ES1B-LTP
| TYPE | DESCRIPTION |
| Category | Single Diodes |
| Mfr | Micro Commercial Co |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | ES1B |
Features of ES1B-LTP
• Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates RoHS Compliant. See Ordering Information)
• Epoxy Meets UL 94 V-0 Flammability Rating
• Moisture Sensitivity Level 1
• Halogen Free. “Green” Device (Note 2)
Applications of ES1B-LTP
• Operating Junction Temperature Range: -65⁰C to +175⁰C
• Storage Temperature Range: -65⁰C to +175⁰C
• Maximum Thermal Resistance: 35°C/W Junction to Lead
• Maximum Thermal Resistance: 85°C/W Junction to Ambient
Environmental & Export Classifications of ES1B-LTP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
